New jet 3/4 hp 16-1/2" floor mount drill press 354169

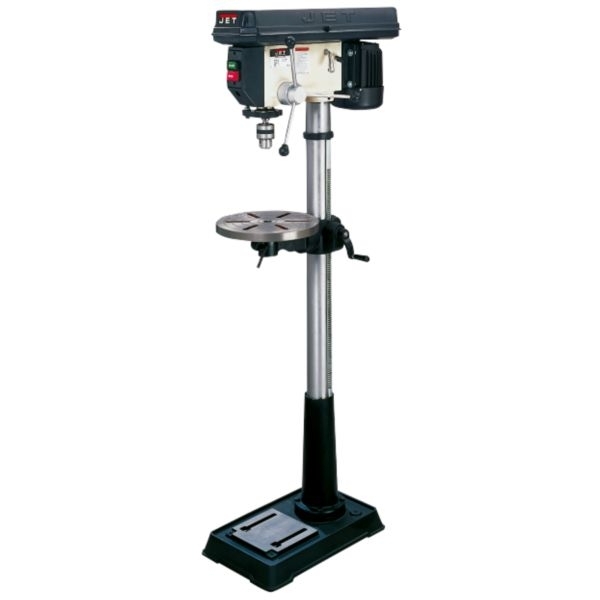

JET JDP-17MF, 3/4 HP 16-1/2" 16-Speed Floor Mount Drill Press
* Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle changes
* Rotating, 45 , tilting crank-operated worktable has a quick release clamp for fast, accurate adjustments
* 1/2" diameter external positive depth stop (354169) has a dual-nut locking feature for quick adjustments
* Clutch-type drill stop (354171) regulates drilling depth
* Spindle has a high-quality ball bearing construction for long life
* Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
Maximum Spindle Distance To Table 29-1/8" Spindle Taper MT-2 Spindle Speed 200 - 3,630 RPM Spindle Speeds 16-Speed Chuck Size 5/8-in Drilling Capacity 5/8-in Table Size 13-3/4-in (Diameter) Spindle Travel 4-3/8-in Base Size 11-1/8-in x 19-5/8-in Column Diameter 3-1/8-in Spindle Distance To Base 49-in Swing 16-1/2-in Overall Dimensions 31-in x 13-in x 63-in Motor 3/4 HP, 1 Ph 115/230V Pre-Wired 115V Weight 178 lbs.
* 3/4 HP 16-1/2" 16-Speed Floor Mount Drill Press - 354169
