Power energy meter coherent field master free shipping
Used but in very good condition.
Was working very well before storage, these products are very robust and well built.
May require calibration to insure a true reading.
Some info and specs. Also see http:// /Lasers/index.cfm?fuseaction=show.page&id=254&loc=830 for FieldMaster User Manual.
Coherent FM Series FieldMaster Power / Energy Meter

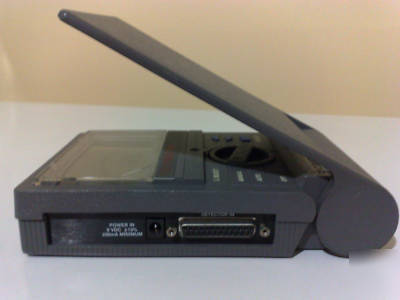

comes with what you see in the pictures.
Model Number: FM (FieldMaster)
Electrical Requirements: 2 - 9Volt Batteries are required ( 9 volt Power Adapter Not Included but can be purchased later)
Condition: Used, powers up, Detector Error shows; this means there aren t any detectors hooked up to it. Detectors are available from Coherent.
FieldMaster is a rugged, compact, microprocessor driven power and energy meter that interfaces with the full line of Coherent power and energy detector heads. FieldMaster is a unique combination of an analog meter for laser tuning with a precise digital display of power or energy on the LCD backplane.
FieldMaster can be used with all lasers commonly manufactured today CW and pulsed, from UV to IR, with rated power form nanowatts to kilowatts simply by plugging the appropriate sensor head into the console.
Digital Backplane The FieldMaster s unique LCD Backplane provides precise digital readout of power or energy and indicators for warning or error conditions.
CW Power Measurement FieldMaster is compatible with the full range of Coherent s SmartDetector Heads, providing power measurement capability form 1 nW to 5 kW.
Pulsed Energy Measurement FieldMaster provides single pulse or pulse train energy measurement from 0.5 mJ to 10 J (1 second pulse).
Broad Wavelength Range FieldMaster detectors cover the spectrum from 0.19 to 10.6 meters.
Smart Detector Technology FieldMaster detectors employ Coherent s Smart Detector Technology. Each detector head has an EEPROM which stores the characteristics and calibration data for the detector. This information is read by the FieldMaster console at start-up, eliminating the need to make manual changes to the console when changing detector heads.
Beam Alignment Display Thermal disk CW sensor heads provide a quadrant display of beam position on the sensor. By centering the beam on the detector, maximum accuracy can be achieved.
Ease of Use FieldMaster controls consist of one clearly labeled rotary switch and three push buttons for wavelength and offset entry. All adjustments for different detector heads are handled automatically using Smart Detector Technology.
Updatable microprocessor architecture The software controlling the FieldMaster system can be easily updated to include the latest developments and enhancements to the instrument.
Portability The compact, lightweight console and internal battery pack create a system that is easily transported from lab to lab, or around the world.
Reliability The FieldMaster, with its integral cover, is designed to withstand the rigors of travel and regular field use. Coherent s rugged detector head design has been the industry standard for more than 30 years.
Accuracy The combination of Smart Detector Technology, microprocessor wavelength correction, and accurate beam positioning information create a highly accurate laser measurement system.
Sensor Types Supported: Thermopile, power measurement. Photodiode, power measurement. Pyroelectric, pulse energy measurement.
Ranging: Automatic or manual, user selectable. Useful ranges for any supported detector head are limited by head specifications only.
Offset: All ranges except top range can be offset by one full range.
Wavelength Correction: Readings can be frequency corrected over the range 190 nm to 10.6 m Correction frequency is stored in permanent memory.
Display: Three digit liquid crystal display (LCD) and conventional moving coil meter. Contrast can be adjusted via push buttons. Contrast setting is stored in permanent memory. Backlit with AC Adaptor connected. Backlight color is red. Backlighting disabled when operating on battery power.
