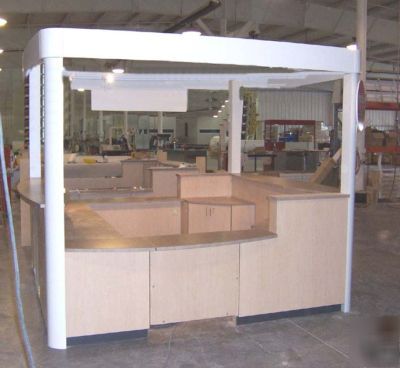

New retail kiosk
* Dimensions: 120 wide x 120 deep x 94 tall.
* Exterior walls are 2 x 4 lumber construction with lumber-core panels on the exterior face, laminated on the outer facing side, and melamine faced panels on the interior face.
* The interior panels are divided into sections and can be removed for access to the corner post bolts for ease of assembly and disassembly.
* Recessed toe-kick panels on the exterior are laminate finish.
* Interior cabinetry consists of two identical computer cabinets in the front of the kiosk, and one storage cabinet at the rear below the lower counter. All cabinets are constructed to AWI architectural millwork standards. Cabinets are melamine finish on the interiors and vertical grade laminate on the exteriors over wood core substrates. All cabinets have electrical outlets inside the cabinets (four outlets each) with countertop grommets for wire management.
* Computer cabinets include keyboard trays on ball bearing slides and one adjustable shelf below the keyboard tray.
* The storage cabinet has two adjustable shelves.
* Countertops are laminate finish with laminate self-edges over MDF substrates. The 1 thick countertops are assembled to the top of the wall sections during on-site installation.
* The exterior of the kiosk includes four acrylic panels that are bolted to the side of the kiosk. The panels sandwich a graphic for promotional displays, one on each side of the kiosk.
* The left side of the kiosk has a swing-up countertop section with a swing-door below for access into the kiosk.
* The canopy posts are polyester powder coated finish over plywood and MDF construction.
* Canopy posts are bolted to the framing of the lower wall sections during on-site installation.
* Canopy sections are constructed of aluminum tube and plate, fully welded, with an acrylic automotive paint finish.
* The canopy includes track lighting with 16 light fixtures. The exterior face of each of the four canopy sections include a sign bracket with a 13mm Sintra sign panel mounted to the outer face. The canopy sections are bolted to the canopy posts during on-site installation.
* The electrical system includes two separate circuits inside the kiosk with each circuit plugged into a floor outlet on-site. Two, 15 amp circuits are required.
* Data cabling for two circuits to each computer desk is included. Data cabling is run in surface mounted Wire-Mold raceways. All data cabling is terminated at a junction box located inside the storage cabinet.
