Holz-her sprint 1416 edgebander (year: 2000) sis# 2114

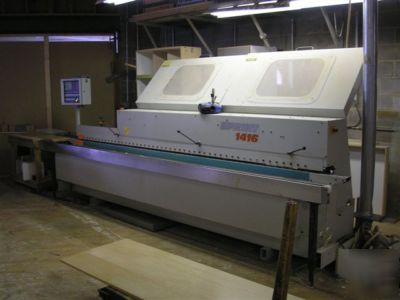

Used HOLZ-HER Sprint 1416 Edgebander (2000) SIS# 2114
More pictures & info for this machine: http:// /CGI/machines.cgi?action=view&SISID=EB_10_2114
SPECIFICATIONS for Holz-Her Model 1416 Sprint Series Edgebander
Assembled in the USA for American woodworkers
Efficient design using latest engineering and manufacturing techniques
Heavy duty design using the best available components
Quickest changeover time in the industry (takes just seconds)
Quickest heat-up time in the industry (3 - 5 minutes)
Patented glue systems require less than half the energy consumption of standard
State-of-the-art electronic control systems
Can be configured to meet virtually any edgebanding application
PROGRAMMABLE LOGIC CONTROL (PLC)
Ability to program all edgebander functions including: edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing.
Programs can be easily created and recalled at will.
Screen with graphic interface makes programming easy.
A picture of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed.
Virtually eliminates set-up time by merely selecting and loading a program, which automatically activates all required edgebander functions simultaneously.
Each program clearly indicates on screen the units included and their exact settings.
Programs can be modified easily to create new programs.
Edgebander can be operated manually when required, without necessity to write a program.
Eliminates use of limit switches and their normal adjustments related to work station activation along the feed track.
Error messages are presented in plain text, to avoid the need for endless error code lists.
Eliminates many mistakes caused by lack of operator skill.
1 (one) universal magazine for solid edges, strips, and coiled material.
Utilizes motion detector to ensure accurate, trouble-free positioning of edge material.
Exclusive TRACTOR-BELT FEED SYSTEM to ensure accurate, trouble-free feeding of edge material, as well as optimum operator safety.
Angled strip gate to prevent double feeding of strips.
Magazine table on rollers for smooth feeding of coiled material.
Edge guide equipped with automatic guillotine lock-out for safety.
3 DEGREE APPROACH ANGLE allows easy feeding of large wood edges.
Automatic guillotine for coiled material up to 4.0 mm.
MODEL 1906 GLUING STATION - CARTRIDGE SYSTEM
Equipped with HOLZ-HER'S exclusive patented "CARTRIDGE" glue system. This is a CLOSED APPLICATION SYSTEM in which the glue is enclosed in an air- tight chamber and cannot oxidize, discolor, burn, or become contaminated with wood dust. This allows for optimum glue adhesion.
Glue applied to panel by patented GLUE NOZZLE from 6-45mm workpiece thickness.
Precise control of all functions including begin and end of glue line, height of glue line, bottom of glue line, volume of glue and face melt temperature.
Less maintenance - no glue pot to clean, fewer parts.
Efficient glue consumption - virtually no waste.
Efficient power consumption - uses less than half that of conventional glue pots.
Fastest & easiest glue color change, 5-10 min.
Fastest heat-up time in the industry, less than 3 min.
No fumes or other environmental hazards.
Machine can be used for trimming without heating up the glue section.
MODEL 1913 - P PNEUMATIC PRESSURE UNIT
Large electronically-driven roller synchronized with feed speed.
Two additional rollers are cantered enabling high gluing pressure and precise banding.
Quick adjustment of pressure section to edge thickness by means of speed wheel and scale.
Heavy duty finish with linear guide bars for precision and trimming.
Two high frequency motors for cutting the leading and trailing edges with draw cuts. (up to 8 mm)
Mounted with uni-point axis enabling quick change for chamfer trimming up to 10?.
Mechanically indexes ends for a perfect finish.
Motors: 2 x .22 KW Speed 9,000 RPM.
Maximum edge thickness up to 13mm.
PCS Pneumatic Changeover System included as standard
Two high frequency motors for top and bottom rough trimming
Maximum Edgestrip Thickness: 13mm
Motor: 2 x 0.6 KW (.82 HP), 300 HZ, Speed 18,000 RPM
MODEL 1942-M COMBINATION FLUSH, CHAMFER & RADIUS TRIM UNIT
Two high frequency motors for edge trimming 0 to 15 degrees.
Vertical and horizontal tracing with uni-point design for no second adjustment when changing the degree of bevel.
Maximum edgestrip thickness: 8 mm.(Standard) 13 mm with optional straight tooling.
Air jets for debris removal.
Radius capability up to 3 mm radius.
Motor: 2 x 0.6 KW (.82 HP), 300 HZ, Speed 18000 RPM.
PCS Pneumatic Changeover System from flush to radius from control panel included as standard
Normally equipped with radius tooling to finish and remove knife marks created by the top,bottom, and radius units on thick PVC edgings. (2,3 mm).
Equipped with air-jet blowers.
Vertical and horizontal copy wheels.
PCS Pneumatic Changeover System moves Scraper Unit in and out from control panel.
Equipped with digital readouts for all adjustment spindles.
MODEL 1983 CONTOUR TRIMMING UNIT, H.F. WITH AIR JET
For rounding of corners: radius, chamfer, or flush trim.
Possible radius: 2 mm and 3 mm.
One motor, 1 x 0.6 KW, 300 HZ.
Feed speed of 12 meters per minute. Max.
Includes 7 Siko digitals for quick set-up.
Equipped with reversible blade cutterhead with radius knives.
MODEL 1944K PLUNGE BUFFING UNIT
Includes two motors with the possibility of adjustment in any direction.
Incorporates plunge control to avoid rounding-over the leading and trailing edges, and ensure tight corners (thick PVC).
Horizontal Swivel = 0 to 20 .
Equipped with cloth buffing wheels for smoothing the sharp edges of thin PVC band after trimming.
Can be equipped with fine sanding wheels for finishing wood and laminate edges.
Edge Strip Thickness: 0.3 - 13mm
Edge Strip Length: 200mm minimum - Unlimited
(12~16mpm with Optional Variable Track
