Fluke mainframe

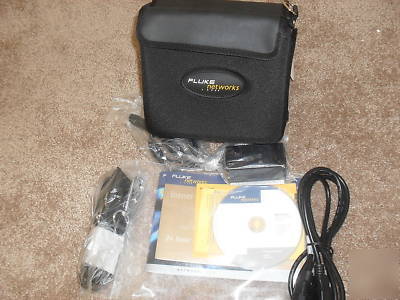

Going out of business, all items where brought within the last 40 days.My friend was the expert before recent events. I have no use for them my specialty is in another field. All are brand NEW with original packaging..

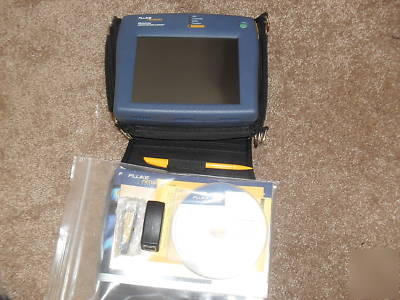

Fluke Networks MetroScope Mainframe
* Ideal for use by service providers.
* Provides RFC 2544 SLA testing.
* Measures jitter and server response time.
* Enables complete IP analysis.
* Supports throughput, latency, frame loss, and back-to-back testing modes for RFC 2544 automated test suite.
* Monitors traffic and discovers and analyze active networks.

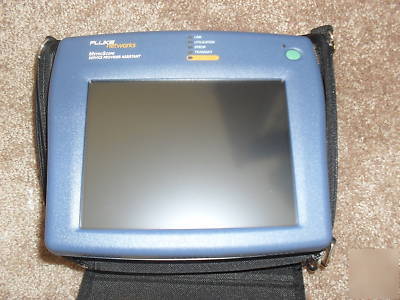

* Full VGA color display offers resolution and detail that other handheld testers can t match.
* Simply touch the screen to run advanced tests such as VLAN discovery and monitoring.
* Customizes scripting for optimum testing.
* Control the tester with a Web browser.
When a network connection fails, users expect fast and complete troubleshooting service from their service provider.
Via a simple user interface, the MetroScope provides complex testing. Just connect the tester to your copper or fiber network via its 10/100/1000BASE-T RJ-45 or 1000BASE-FX SFP s dual SC connectors. Or use a Web browser to test a remote network.
The MetroScope supports throughput, latency, frame loss, and back-to-back testing modes. This enables it to perform RFC 2544 testing. The tester generates customized reports. These reports include data about server response time, physical layer and BERT testing (the tester measures optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage). The tester also provides VLAN monitoring.
In addition to RFC 2544 testing, you can even test jitter with accuracy in microseconds. This feature gives you SLAs for VoIP and IPTV.
Since the tester supports SNMP, you can query switches and routers, find overloaded ports, and pinpoint offending devices.
Approvals MetroScope Mainframe unit: Shock and vibration: MIL-PRF-28800F for Class 3 equipment;
Safety: CSA, CE, FCC Part 15 Class A, C-TICK N10140;
AC adapter: UL listed, CSA approved;
Other: EMC EN61326, Class A, Criteria C
SFP Modules Supported 100BASE-LX, -SX, -ZX, -BX, 100BASE-FX

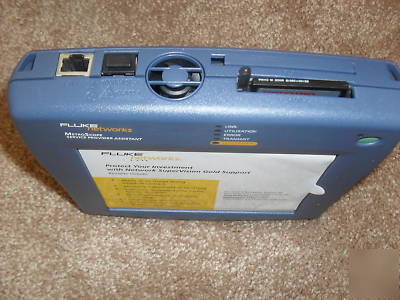

Connectors Testing ports: (1) RJ-45 10/100/1000BASE-T Ethernet, (1) pair of SC on SFP module, Communication ports: (1) USB, (1) PCMCIA (PC Card type II). (1) SFP, (1) CompactFlash (Card Type I/II), (1) DB9 serial, (1) headphone jack, (1) microphone jack, (1) Kensington lock receptacle,

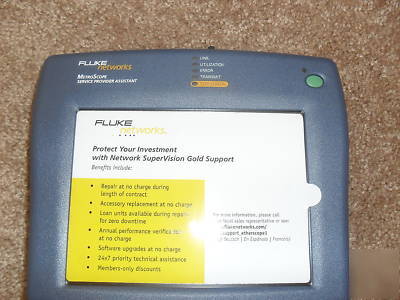

Indicators (6) LEDs: Power, NEED OTHER 5 LEDs here
Temperature Operating: 32 to 122 F (0 to 50 C);
Storage: -4 to +140 F (-20 to +60 C)
Battery charging: 50 to 104 F (10 to 40 C);
Power AC input: 90 to 264 VAC, 28 to 62 Hz, 1.5 A external AC adapter/battery charger;
Battery: (1) 7.2 VDC, 4.2 A Lithium ion removable/rechargeable battery (TECH: IS 4.2 A correct?);
Battery life: Typical: 4 hours; Standby: 10 hours
Auto charger: 12 V charger (fits in cigarette lighter) with 6-foot (1.8-m) cord (fully extended) and LED power indicator
Size 7.5"H x 6"W x 1.75"D (19.1 x 15.2 x 4.4 cm)
Weight (with battery) 1.9 lb. (0.9 kg)
