Hp 3325A synthesizer/ function generator w/ opt 2

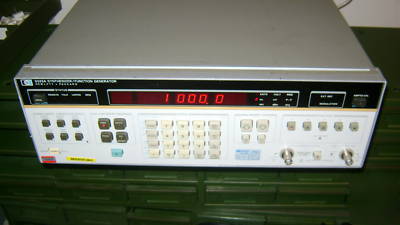

HP 3325A SYNTHESIZER/ FUNCTION GENERATOR W/ OPT 2
Option 002 High Voltage Output:
Frequency Range: Sine and Square Wave: 1 Hz to 1 MHz
Triangle and Ramps: 1 HZ to 10 kHz
Amplitude Range: 4mVp-p to 40Vp-p (>=500 ohms, <500pF load) maximum output current +/-40mA
Amplitude Accuracy: (at 2 kHz) +/-2% of full output for each range
Amplitude Flatness: +/-10% of programmed amplitude
DC Offset: 4 times the range of standard instrument
Harmonics: (under full load) 10 Hz to 50 kHz, no harmonic greater than -65dB
for 50 kHz to 200 kHz -60dB and 200 kHz to 1 MHz -40dB.
Square Wave: Rise/Fall Time <=125 nanoseconds, 10% to 90% at full output with >500 ohms and <500 pF load
Overshoot: <10% of peak amplitude with same load.
