Hp/agilent 8665B signal generator 100 khz -6 ghz w/opts

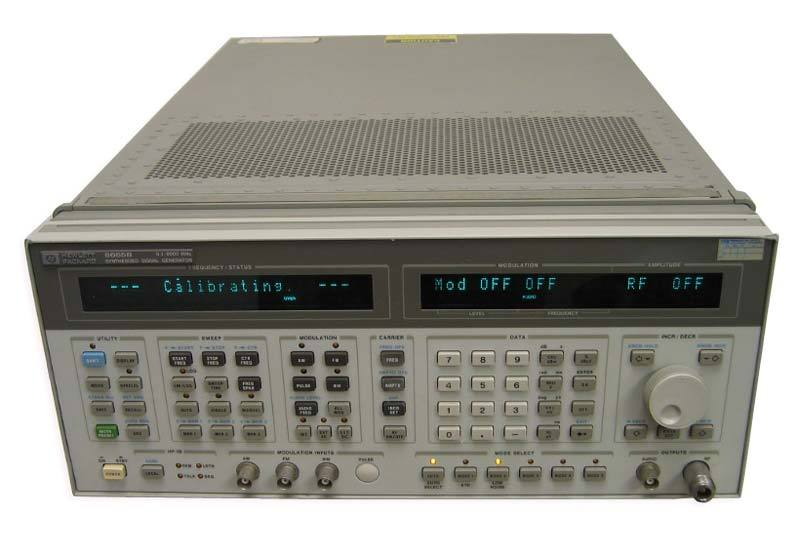

HP/Agilent 8665B Signal Generator 100 kHz -6 GHz w/opts
Up for sale is a HP/Agilent 8665B Signal Generator 100 kHz - 6 GHz with the following:
* 001: Hi Stability Timebase
* 004: Enhanced spectral purity
* 010: Reduced RF leakage configuration
The HP 8665B Signal Generator is suited for basic receiver testing up to 6 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation). Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 20 MHz are suitable for many applications such as high-speed digital communications. The internal modulation source generates sine, square, triangle or sawtooth waveforms.
* <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
* <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
* AM, FM, and optional pulse modulation
* 0.01 Hz frequency resolution
