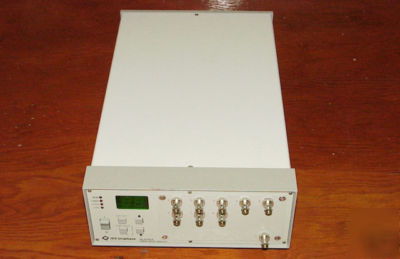

Jds uniphase sb 1X8 fiber optic switch c config
JDS UNIPHASE SB 1X8 FIBER OPTIC SWITCH C CONFIG
* Fiberoptic component testing and measurement
* System Configuration: C, The 1xN configuration allows a single commoninput to be switched to any of the outputs
* Wavelength range: 1270-1670 nm
* Insertion Loss: 0.4 dB (Typical), 0.7 dB (Maximum)
* Return loss SM standard/analog: = 65 dB, 60/65 dB
* Polarization dependent loss SM: 0.02 dB, 0.05 dB
* Insertion loss stability: 0.03 dB, 0.05 dB
* Sequential switching: 0.003 dB, 0.005 dB
* Random switching: 0.01 dB, 0.025 dB
* Crosstalk (maximum) SM: - 80 dB
* Maximum input power (optical): 300 mW
* Control local and remote via GPIB and serial RS232 interfaces
