Oriental motor 4IK25RGN-c 25W 220V 0.35A 4P motor

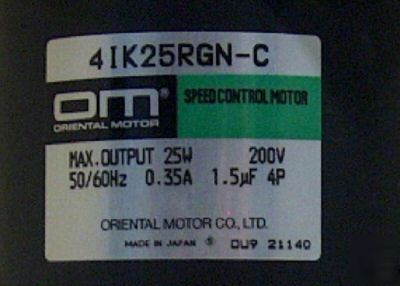

ORIENTAL MOTOR 4IK25RGN-C 25W 220V 0.35A 4P MOTOR.
NEW ITEM IN ORIGINAL BOX! 1 YEAR WARRANTY !!!
DESCRIPTION: 4IK25RGN-C INDUCTION MOTOR
CHARACTERISTICS: K SERIES, CAN WORK WITH 4LB10GN-1 GEARBOX AND US25W-C SPEED CONTROLLER
100M ohms or more when measured by a 500 VDC megger between the windings and the frame after rated motor operation under normal ambient temperature and humidity.
Sufficient to withstand 1.5 kV at 50 Hz and 60 Hz applied between the windings and the frame for 1minute after rated motor operation under normal ambient temperature and humidity.
144 F (80 C) or less in the coil, as measured by the resistance change method after rated operation with a gearhead installed.
Built-in thermal protector (automatic return type) Open: 266 F 9 F (130 C 5 C) Close: 179.6 F 27 F (82 C 15 C)
14 F ~ 104 F (-10 C ~ +40 C) (nonfreezing)
