> New brand cat pump 3545 1000PSI 45GPM 765RPM car wash
New brand cat pump 3545 1000PSI 45GPM 765RPM car wash
LEADING CHOICE IN AUTOMATIC CAR WASH SYSTEMS
This is the robust higher performance dependable and low
UP for sale, I have TWO 3545 CAT

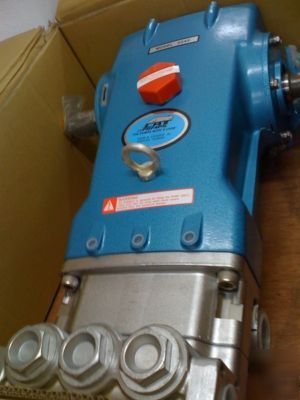

+ Brand new, never used 3454 CAT pump (pictured here), $ 5,500.00
+ One 1.5 years coin car wash used pump (pictured below)
includes expensive separate o-ring and bushings kit, no work needed yet.
Sold in perfect working condition, separate purchase required $ 3,000.00
+ Gauges, Solenoid Valves, Regulators combined both used
This pumps puts out 45 GPM @ 1000 PSI, and will require at least a 20HP electric motor to operate.
http:// /catpumpsforsale
Call (***) 205-0062 if more details are needed.
Flow........................................................45 GPM (170 L/M)
Pressure Range.........................100 to 1000 PSI (7 to 70 BAR)
Inlet Pressure Range ..............Flooded to 70 PSI (Flooded to 4.9 BAR)
RPM .....................................................765 RPM (765 RPM)
Bore...........................................................1.772" (45 mm)
Stroke........................................................1.890" (48 mm)
Crankcase Capacity................................4.2 Qts. (4 L)
Maximum Liquid Temperature ..................140 F (60 C)
Above 130 F call CAT PUMPS for inlet conditions and elastomer
Inlet Ports (2) ...................................1-1/2" NPTF (1-1/2" NPTF)
Flushing Ports (2) (3541C, 3547C).....1/4" NPTF (1/4" NPTF)
Discharge Ports (2)................................1" NPTF (1" NPTF)
Pulley Mounting .................................Either Side (Either Side)
Shaft Diameter ......................................... 1.378" (35 mm)
Weight.....................................................139 lbs. (63 kg)
Dimensions.........................23.89 x 18.11 x 9.72" (607 x 460 x 247 mm)
REQUIREMENTS.........................20-30 HP
ACCESORIES List ( separate purchase req):
a) Used (1) Pressure Gauge, USED, 3000 psi 250 bar - .
b) NEW (2) Pressure Gauge 3500 psi 250 bar - .
c) Used (1) Pressure Regulator, Cat Pumps Brand model: 7063 SS
d) Used (1) Stainless Steel Rechargeable Pulsation Dampener Model 6013
e) Used Pressure Sensitive Regulating Unloader Model 7590
f) Used (2) Swivel Inline Mosmatic manufacture Stainless Steel , 3000 psi, Part. No.
g) Used (1) Swivel Mosmatic manufacture Stainless Steel, Part No. 41.261 en 90
h) New 2 Swivel Inline Brand Mosmatic manufacture Stainless Steel, Part No. 34.864
3000 psi . NPT, Brass Body.
i) Used Solenoid Hi Pressure, Hi Flow, Dema Brand, Model 458 S 1 . NPT, 120 V,
j) Used Solenoid Hi Pressure; Hi Flow, Brand Dema, Inline 1 . NPT, 120 V, Brass
