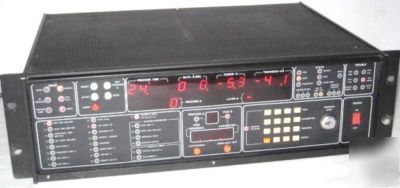

Airco temescal fdc-8000 thin film deposition controller
This listing is for a control (controller).
* Model / Part #: FDC-8000 (FDC8000)
* Description: Thin-Film Deposition Controller
The Airco Temescal Model FDC-8000 Film Deposition Controller provides automatic control of single or multi-layer film deposition in either a production or development environment. Improved predictability and repeatability of deposited film characteristics is accomplished by dependable digital control of the deposition process. A number of previously unavailable features make the FDC-8000 particularly suited to run unattended in the fully automated model: run completetion in the event of crystal failure, extensive internal checking and user-setable performance limits and abort enables.
* Thickness measurement range - three automatic ranges 0 to 999.9 k
* Rate measurement range - two automatic ranges 0 to 999 /sec
* Thickness limit 0 to 999.9 k
* Two independent set points:
* Thickness set point 0 to 999.9 k
* Time set point 0 sec to 99 min, 59 sec
* Measurement update rate 4 times per second
* Rate control range 1.0 to 999.9 /sec
* Rate control resolution 0.1 /sec up to 99.9 /sec; 1.0 /sec from 100 to 999 /sec
* Measurement accuracy - Thickness and rate readout 0.5% 1 count
* Programable interlock no. 1
* Programable interlock no. 2
* Programable interlock no. 3
* Programable output no.
* Diagnostic self-test
* Manual mode for remote power control
I have the manual available. It has further specifications, etc. Please call or email if you'd like to view it.
