New red/green bi-color leds plcc-4 osram lsg-T670 100X

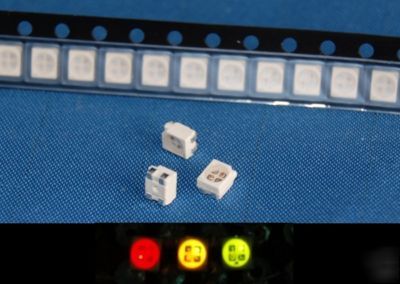

Brand new Red/Green Bi-Color LEDs.
http://catalog.osram-os.com/catalogue/catalogue.do?act=showBookmark&favOid=00000000000210d5000b003a
These are in the PLCC-4 SMD package, big enough to easily mount by hand. (YMMV)
The leds are arranged with the cathodes and anodes opposed, meaning that if you mount them on PLCC-2 pads with the two contacts on each end shorted, reversing the polarity will switch from red to green. (See the diagram below.)
Forward voltage, max = 2.5 V (both colors)
Forward voltage, typical = 2.0 V (both colors)
Dominant wavelength at IF 10 mA: Red 628 nm, Green 570 nm
Please contact us if you need more than listed here, or even full reels.
