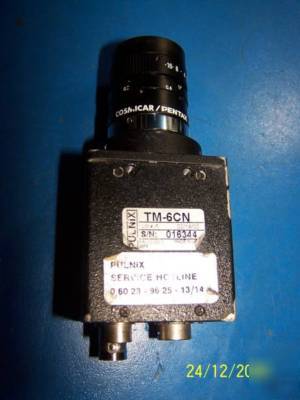

Pulnix / jai ccd tm-6CN + cosmicar/pentax tv lens 25MM


As seen in actual picture and above described
Description of JAI-Pulnix TM6CN (RM6CN)
The TM-6CN offers a high resolution interline transfer 1/2-inch CCD imager in a small, very rugged package. The size of the TM-6CN eliminates the need for a remote imager camera in all but the most confined spaces. Designed to meet a variety of application requirements, the most commonly needed adjustments, such as gain, gamma, AGC, and field/frame selection, are easily accessible on the rear camera panel. C-mount is also standard. The camera allows for the external selection of eight different shutter speeds (1/60 sec. to 1/10,000 sec.) by attaching the SC-745 Shutter Controller to the 6-pin connector located on the rear of the camera. Pixel clock output is a standard feature. The camera also includes auto iris outputs and accepts a simple reset that is asynchronous but without a shutter.
: 1/2 inch interline transfer CCD
Pixels 768 (H) x 494 (V) - TM-7 series
752 (H) x 582 (V) - TM-6 series
Cell size 8.4 (H) x 9.8 (V) microns - TM-7 series
8.6 (H) x 8.3 (V) microns - TM-6 series
Sensing area 6.41 (H) x 4.89 (V) mm
Low noise, blooming suppression
Chip size 7.95 mm (H) x 6.45 mm (V)
Scanning: 525 lines, 2:1 interlace - TM-7 (EIA) series
625 lines, 2:1 interlace - TM-6 (CCIR) series
Clock 28.6363 MHz - TM-7 series
Pixel clock 14.31818 MHz - TM-7 series
Horizontal frequency 15.734 KHz - TM-7 series
Vertical frequency 59.92 Hz - TM-7 series
TV resolution: 570(H) x 485(V) lines - TM-7
Video output: 1.0V p-p composite video, 75
Minimum illumination: 1.0 lux (F=1.4) without IR cut filter
AGC: On (16dB standard, 32dB max) / Off
Power requirement: DC 12V, 2.5 W
Operating temperature: -10 C to +50 C
Storage temperature: -30 C to +60 C
Operating humidity: Within 70%
Vibration: 7G (200Hz to 2000Hz)
Dimensions: TM-7CN 46mm (W) x 40mm (H) x 74mm (L) 1.81" (W) x 1.57" (H) x 2.95" (L)
TM-7EX 46mm (W) x 40mm (H) x 79mm (L) 1.81" (W) x 1.57" (H) x 3.11" (L)
