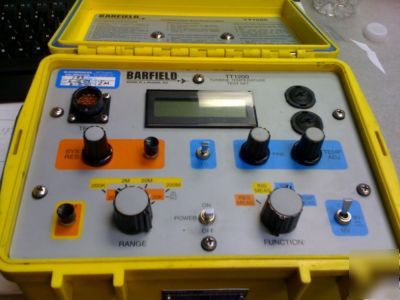

Barfield TT1200 digital turbine temp

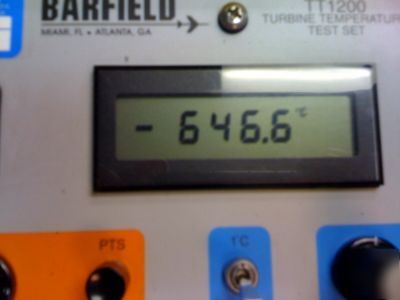

The TT1200 is specifically designed to accomplish all requirements for testing the aircraft Chromel-Alumel (K type) turbine temperature measuring systems. The tester can measure resistances down to 0.001 , measure insulation up to 200 M , perform indicator runouts with a resolution of .1 C or 1 C and a range of 1372 C, and can also display the equivalent F or millivoltages and may be used as a master indicator as well. The TT1200A includes many features like: microprocessor based, backlit alphanumeric display, user prompts, F and millivoltage display, temperature range to 1372 C, 4 resistance and 4 insulation ranges and power comes from common "C" batteries for all functions. Features Microprocessor based Calibration Date available from display with User Alerts to approaching Cal Date Backlit 16 Character Alphanumeric Display - With User Prompts True 4-Wire Resistance Measurements Has C, F, and equivalent millivoltage displays Powered from long lasting C cell batteries with Auto-Off feature to conserve batteries Timed measurement with Display Hold feature for Resistance and Insulation functions - No need to hold push button depressed
* Accuracy: 0.3 C (Typ at 25 C)
* 20W: 0 - 19.999W 0.001W increments
* 200W: 0 - 199.99W 0.01W increments
* 2KW: 0 - 1.9999KW 0.1W increments
* 20KW: 0 - 19.999KW 1W increments
* Accuracy: 0.05 % of reading 2 counts
* 200KW:0 - 199.9KW 0.1KW increments
* 2MW: 0 - 1.999MW 1KW increments
* 20MW: 0 - 19.99MW 10KW increments
* 200MW: 0 - 199.9MW 1001KW increments
* Accuracy: 5 % of reading 2 counts
* OPERATING TEMP: -10 to 50 C
Specifications Subject To Change
