Modicon aeg lot as-bdap-218 as-bdep-218 as-hdta 200 201
Discrete Input / Output Modules & Sub-Racks
P/N's: AS-BDAP-218 / AS-BDEP-218 / DTA 200 / DTA 201

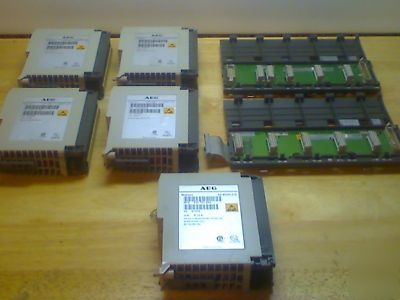

Photobucket (more photos below)
This is a lot of used working modules and racks recently removed from service a part of a large corporate update. They are in good cosmetic and working condition.
* CD disc containing 2 references manuals - 1) Modicon A120 Series I/O Modules User Guide (880 pages) and 2) Modicon 984 Programmable Controller Systems Manual (329 pages)
Here is some additional information from the manufacturer on the AS-BDAP-218 Modules:
The DAP 218 has 17 LEDs. One green LED opposite terminal screw 1 indicates the presence of bus power to the module. Sixteen red LEDs opposite terminal screws 3 ... 10 and 14 ... 21 indicate that the output points have been enabled on the module's logic side.
The following is a list of DAP 218 output module specifications:
* Isolation: Field to bus: 1780 Vac RMS @ 47-63 Hz, or 2500 VDC, both for a period of 60 s without breakdown
* External Source Requirement: 24 ... 230 Vac, 47 ... 63 Hz
* Internally Provided Source: 5 Vdc from I/O bus; 175 mA maximum
* Power Dissipation: 13 W with all points ON
* Fusing (per group): One 250 Vac, 6.3 A time-lag fuse (Wickmann TR5-T Fuse; Modicon Part # 57-0110-000)
* Working Voltage Range: 24 ... 240 Vac continuous, 47 ... 63 Hz
* Maximum Output Voltage: 300 Vac RMS maximum for 10 s 400 Vac RMS maximum for 1 cycle Operating Mode True High
* OFF State Leakage Current: 3.75 mA maximum
* ON State Voltage Drop: 1.5 Vac RMS maximum
* Maximum Load Current: Up to 0.5 A/channel
* Maximum Surge Current: 15 A/output, 1 cycle max., 1 surge/min
* Minimum Load Current: 30 mA RMS
* Response Time: 8.34 ms maximum OFF -> ON and ON -> OFF @ 60 Hz
* Switch Point: +/- 10 Vac of zero line crossing
* Maximum Rate of: Applied DV/DT - 400 V/micros / Commutating DV/DT - 5 V/micros
* Wire Size/Terminal: One wire: 14 AWG / Two wires: 20 AWG
* Discrete 1x/0x: 0 in/16 out
* Operating Temperature: 0 ... 60 degrees C
* Storage Temperature: -40 ... +80 degrees C
* Humidity: 0 - 93 percent relative humidity, noncondensing, @ 0 to 60 degrees C
VDE 0160; UL 508; and CSA 22.2 No.142 Standards; and European Directive EMC 89/336/EEC (See Requirements for CE Compliance, p. 857) Standards
The module is labelled both as a 24 VAC to 115 VAC or 24 VAC to 230 VAC. When used in a VDE 0160 environment the voltage range is reduced to 24 VAC to 115 VAC. When used in a non VDE 0160 environment the module meets specification IEC 1131; UL 508: and CSA 22.2 No.142 and operates over the full range of 24 VAC to 230 VAC.
Here is some additional information from the manufacturer on the AS-BDEP-218 Modules:
Note: The DEP 218 is designed for capacitive loads. Without any discharge bypass resistor. When using field devices with resistive loads you should use 120K 1/4 Watt resistors (approximately) across the input terminals of the DEP 218. This allows accurate switching of phase firing type solid state sensors by ensuring that the capacitor discharges within the sensor required 50 milliseconds.
The DEP 218 module has one green LED opposite terminal screw 1. When this LED is ON, it indicates the presence of working voltage from the power supply. The module also has 16 red LEDs, eight opposite terminal screws 3 ... 10 and eight opposite terminal screws 14 ... 21; when any one of these LEDs is ON, it indicates voltage present at the corresponding input.
The following is a list of DEP 218 output module specifications:
* Isolation: Optocoupler on each input point, 1.8 kV field-to-bus
External Source Requirement: 115 Vac
* Internally Provided Source from the I/O bus: 5 V, less than 50 mA
* Rated signal Value: 115 Vac / 47...65 Hz
ON State Signal Level: 80...132 Vac
* OFF State Signal Level: 0...35 Vac
* ON State Input Current: 15.5 mA/input @ 115 Vac / 6 mA @ 80 V, 20 mA @ 132 V
* OFF State Input Current: 3 mA maximum
* Response Time: ON - 10 ms typcial / OFF - 40 ms typical
* Wire Size / terminal: One wire - 14 AWG / Two wire - 20 AWG
VDE 0160; UL 508; and CSA 22.2 No.142 Standards
