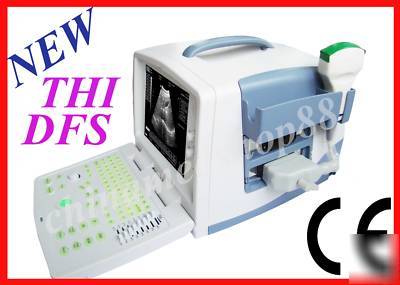

Full digital portable ultrasound machine scanner convex
9-2.jpg picture by risingmed001 7-3.jpg picture by risingmed001
8-2.jpg picture by risingmed001 5-3.jpg picture by risingmed001
6-3.jpg picture by risingmed001 4-4.jpg picture by risingmed001
l Suitable for the diagnosis of Abdomen, Cardiac, Gynecology, Obstetrics, Thyroid Gland, Small Organs, Urology etc..
l Widely used for clinical examination and diagnosis. They are the ideal equipments to meet the needs of various kinds of
l RDA: Real-time dynamic aperture imaging
l DRA: Dynamic real-time acoustic apodizer
l DRF: Dynamic receiving focus
l DFS: Dynamic frequency scanning, frequency range: 2.0-12.0MHz, 4 kinds of scaning frequencies
l Embedded computer platform is adopted in the ultrasonic master system
l DFC Dynamic frequency scanning
l Histogram, Sectionl drawing, Puncture guide
l Save hundreds of thousands of images and cine loop permanently
l Dynamic real-time PIP local zoom functions
l Multiple kinds of OB. measurement reports, fetus physiological grades and reports and
l Auto-create report systems of Gyn., small organs, cardiac, urology and other sections
l Compatible of jet printer, laser printer, video printer and video recorder
l Display mode: B, 2B, 4B, B/M, M
l Image precess technologies: controllable frame correlation, Gamma correction, edge enhancement, image smoothing,
image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation
l Dynamic Range: 100Db, 4 steps of switches
l Image magnification, stepless magnification, dynamic real-time PIP local zoom functions
l Cine loop: 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and
l Image management system: the functions of pigeonholing, browsing, comparing, saving, printing and transferring images;
as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated
by full-screen browse under slide mode.
3-3.jpg picture by risingmed001 1-4.jpg picture by risingmed001
l Measurement and calculation: measure perimeter and area by distance or ellipse method; measure perimeter and area by track
method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area
stenosis ratio, angle measure. All calculations are automatic.
l Assist tools: puncture guide, histogram, sectionl drawing
l Menu manage interface, real time online support and navigation clew system, image fore-set and one-key optimization functions
l Auto-measure software of OB., Gyn., small organs, cardiac, urology and others:
OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, FI, LIMP, BBT,
Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine
Small organs: thyroid gland, hip joint
Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO,
CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV
Urology: remained urine sample, prostate, PSAD
l Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.
l Patient cases database systems. All the data could be saved, searched and managed
l Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve
l 10.4 inches SVGA high resolution non-interlaced monitor
l 256 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode
l 3.5MHz R60/R50 electronic convex transducer(2.0/5.0MHz)
l 7.5MHz L40 linear probe (5.0/10.0MHz, multi-frequency)
l 6.5MHz R10/R13 trans-vaginal probe (5.0/8.0MHz, multi-frequency)
l 3.5MHz R20 cardiac probe (2.0/5.0MHz, multi-frequency)
l Jet printer, Laser printer, Video printer and video recorder
l Multiple kinds of saving modes are all supported, containing soft disk, hard disk, falsh disk, CF card, SD card
10-2.jpg picture by risingmed001
RPX etc., we deliver your item to your home and business with the greatest efficiency and highest quality of service.
RPX etc., please send an e-mail to us in advance.
following contries and areas:Central Africa, South America, Africa, west Asia, etc..
The warranty of our products is 12 months!!!
be new, unused and in the original packaging as received.
We are looking for you to be our partners. Don't hesitate to contact us if you are interested. Just join US! Risingmed assures
dealers and clients to continue provide products with innovative design, reliable quality, competitive prices and rapid&effective
