Gps active antenna mmcx male for navman cn 510 cn 520

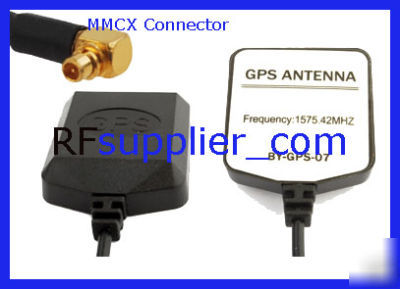

Mini GPS Active Antenna MMCX male right angle connector
Click here view more GPS antennas in our store
2. MMCX female straight
3. MMCX male right angle default
4. MMCX female right angle.
5. RP-MMCX male right angle
Optional Length ( Cable RG174):
4 contact us for other length
Center Frequency 1575.42MHz? 3 MHz
Peak Gain 3dBic Based on 7 7cm ground plane
Gain Coverage -4dBic at 90 0 +90 (over 75% Volume)
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Filter Out Band Attenuation (f0=1575.42 MHZ)
DC Voltage 3V , 5V, 3V to 5V or other
DC Current 5mA /11mA/15mA Max
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
