Hp agilent N1675A/001 optical test module

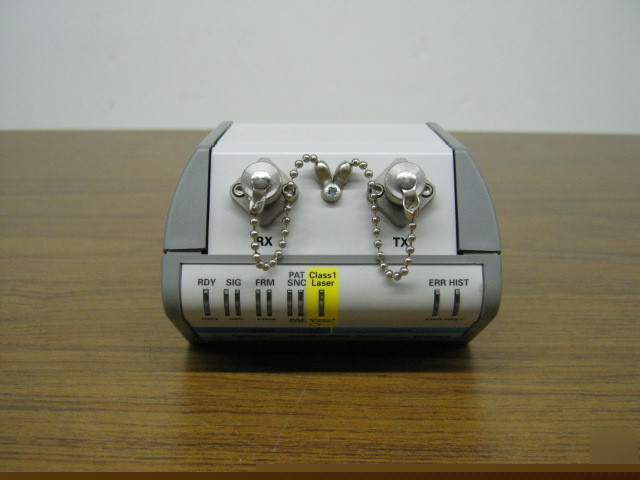

HP Agilent N1675A/001 Optical Test Module
The N1675A features 622/155Mbps single mode 1310nm IR optical interfaces for testing at OC-12 and OC-3 SONET or STM-4 and STM-1 SDH rates
This test module provides clear channel concatenated BER testing at STS-12c, STS-3c and STS-1 SONET or VC-4-4c, VC-4 and VC-3 SDH rates using standard PRBS, fixed and user programmable BERT patterns
To meet the timing synchronization needs of the networks, this optical module can be configured to synchronize to the receiver signal or to the internal clock source
Whether its short or long term monitoring, the N1675A provides hierarchical SONET/SDH status information and detailed reporting of alarms and errors at the section, line and path levels. The module also permits the generation of a full set of SONET/SDH errors to verify connectivity, check operating thresholds and test network surveillance.
The OC-12/STM-4 Optical Test Module provides pointer, APS, Section/Path Trace, and Overhead monitoring and control.
Option 001 = 622/155 Mbps optical testing with FC Connectors
