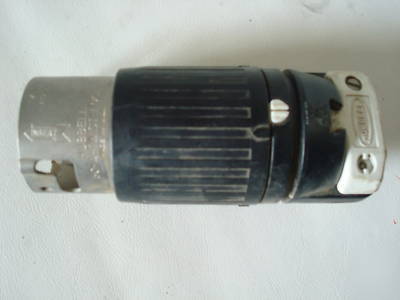

Hubbell CS6365C 125/250 volt standard ac plug
Hubbell CS6365C AC 125/250 Volts Standard AC Plug
This plug is in GREAT Condition
Twist-Lock was invented by Hubbell and is a patented term. Locking plugs have the pins arrayed in a circular manner. The plug is inserted into the female side and twisted to lock in place. While there is a NEMA standard for 50 amp Locking Connectors it has not been adopted by the industry. Instead a California Standard for 50 amp is widely accepted. Assure the Plug will fit on the cord you are using and will mate with the female side used in your application.
* Certified for current interrupting at full rated current
Male Plug is mounted (terminated) on a power cord and interfaces with either a female connector, wall receptacle, or female outlet
Poles and Wires: 3 Pole, 4 Wire Grounding
Cord Dia. .625 in. to 1.050 in.
Blade Holder Material: Glass Reinforced PET
Terminal Retainer Material: Glass Reinforce PET
Housing Material: Black Supertough Nylon
Cord Clamp Material: Glass Reinforce PET
Terminal Screw Material: Stainless Steel
Ground Screw Material: Stainless Steel
Cord Clamp Screw Material: 302/304 Stainless Steel
Body Holding Screw Material: 302/304 Stainless Steel
Safety-Shroud Material: Stainless Steel
Latches Material: Supertough Nylon
Front & Rear Housing Material: Supertough Nylon
Dielectric Voltage Withstands: 2,000V Minimum
Temperature Rise: Max 30 C after 50 Cycles at 150% rated current
Operating Temperatures Max Continuous: 75 C, Min -40 C (w/o Impact)
Terminal Identification: Terminals Identified in Accordance with UL498 (X, Y, Z, White, Green)
Flammability: UL 94 HB or Better
