Cincinnati 325-12 model de centerless grinder (1994)


Available for inspection at our Kercher Street warehouse in beautiful downtown Miamisburg, OH is this "ABSOLUTELY EXCELLENT" Cincinnati 325-12 Model DE Centerless Grinder, S/N 350412H77-0016R94. This machine was originally manufactured by Cincinnati Milacron in 1977, then remanufactured by Cincinnati Milacron in 1994. It is complete with a DE Smith and Associates, Model LV638 coolant chiller w/ filtering system, S/N W-1863A, Manufactured New in 2002. This machine was part of the surplus equipment from Delphi Automotive when they moved their automotive air conditioning air compressor division from Moraine, OH to Brazil. Our electronics technician serviced this machine for Delphi and says it was in excellent operating condition when it was disconnected prior to our picking it up.
The specifications for the Cincinnati Centerless Grinder are:
Grinding Wheel Size 24" Dia X 12" Hole X 12" Wide
Regulating Wheel Size 14" Diameter X 6" Hole X 12" Wide
Regulating Wheel Speed 10 RPM to 300 RPM Infinately Variable
Grinding Wheel Main Drive 25 HP AC w/ V-Belt Drive
Regulating Wheel drive Retrofitted DC Servo Drive
Floor Space 11' X 8' X 7' High, not including electrical panel and mist vent
Complete 440V/3PH/60CYC Electrics
Five (5) Shoe Filmatic Grinding Wheel Spindle Bearings
Grinding Wheel Mount for 12" Wheel Width
Servo Driven Profile Grinding Wheel Truing Attachment
Servo Driven Profile Regulating Wheel truing Attachment
Automatic Lubricating System to Slides
Outboard Bearing Support on Regulating Wheel Spindle

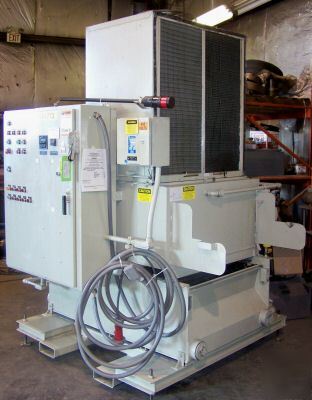

DE Smith and Associates Model LV638 Coolant Filtration and Koolant Koolers Chilling System.
Machine Tools of America and you can contact us at (***)-545-8475 for Bruce or (***)-604-6031 for Andy. Our fax is (***)-866-6668 or (***)-866-8514 and the office phone is (***)-866-8334, but we re seldom there.
Inform them that they will pick up your machine at Machine Tools of America s warehouse at 515 Kercher St., Miamisburg, OH 45342. The Grinder and Chiller will weigh approx. 28,000# and occupy 30 of bed space. This will require a step deck or double drop deck trailer.
