8" w 20" l jung HF50RD surface grinder, auto idf, 3X au
8" W 20" L Jung HF50RD SURFACE GRINDER, AUTO IDF, 3X AU
8" Width 20" Length Jung HF50RD SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, VARI-SPD. SPINDLE

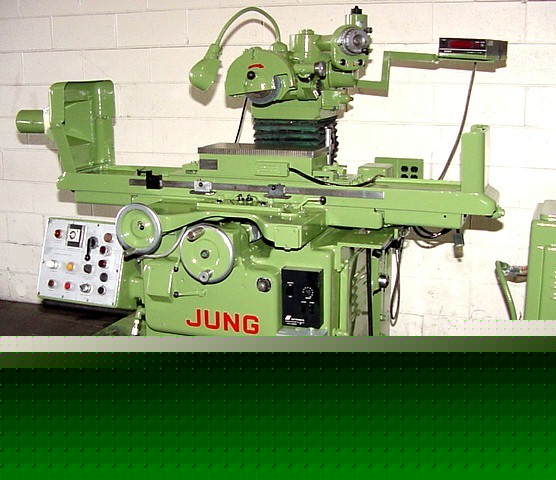

JUNG (GERMAN) "HIGH PRECISION" SURFACE GRINDER
WITH AUTO INCREMENTAL DOWNFEED
DESIGNED FOR THE USER WHO NEEDS THE HIGHEST PRECISION
TOLERANCES. COMPLETE WITH ORIGINAL FACTORY SET-UP FOR
FORM GRINDING (ELECTRONIC VARIABLE SPEED SPINDLE).
THIS MACHINE PRESENTS AN UNUSUAL OPPORTUNITY FOR
WIDTH & LENGTH GROUND ........................ 8" X 20"
MAXIMUM DISTANCE BETWEEN TABLE SURFACE AND
GRINDING SPINDLE CENTER ......................... 16"
HYDRAULIC, LONGITUDINAL TABLE SPEED ... 3' TO 65.6' FPM
AUTOMATIC CROSS INCREMENT ............. 0.008" TO 0.30"
CROSS HANDWHEEL W/ADJUSTABLE DIAL, GRAD. ....... 0.001"
FINE CROSS ADJUSTMENT, GRAD. .................. 0.0005"
AUTOMATIC INCREMENTAL DOWNFEED ..... 0.00005" TO .0005"
VERTICAL ADJUSTMENT, HANDWHEEL GRADUATIONS .... 0.0001"
GRINDING SPINDLE SPEED, INF. VARI. ... 1000 TO 4000 RPM
APPROX. MACHINE WEIGHT ...................... 3,750 LBS
ELECTRONIC INFINITELY VARIABLE SPINDLE SPEEDS FROM
HYDRAULICALLY POWERED LONGITUDINAL AND CROSS FEEDS
8" x 18" O.S. WALKER CROSS POLE FINE-DIVISION
ELECTRO-MAGNETIC CHUCK & NEUTROFIER CONTROL
SONY MODEL #LY-201 1-AXIS DIGITAL READOUT DISPLAY
WIRED PRESENTLY FOR 3/60/208 VOLTS
* * TRULY SUPERB MACHINE - RUNS BEAUTIFULLY * *
