> LA4270, dual, af po, 6W/ch

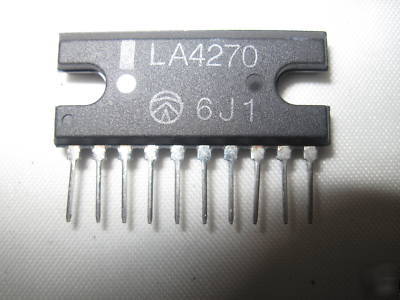

LA4270, dual, af po, 6W/ch
High Output, Dual Channel AF Power IC:
PO = 6W x 2, VCC = 25V, RL = 8 , f = 1kHz
Low Distortion: THD = 0.1%, VCC = 25V, RL = 8 , f = 1kHz, PO = 2W
Minimum Number of External Components Required (No Bootstrap Capacitor Required)
Low Pop Noise at Time of Power Switch ON/OFF
High Ripple Rejection: 58dB Typ
Wide Supply Voltage Range: 10V to 32V
On Chip Protection Against Abnormality (Thermal Shutdown, Overvoltage)
