Evolution bora magnetic drilling machine

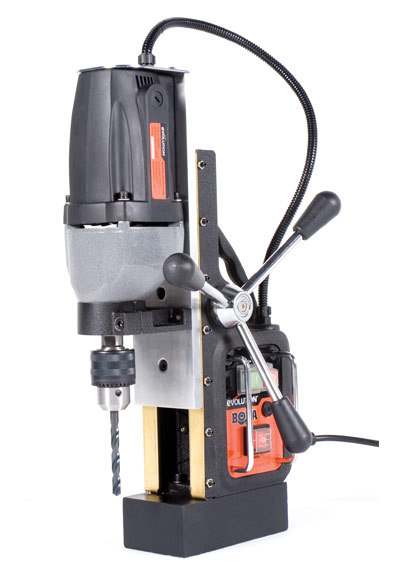

EVOLUTION BORA MAGNETIC DRILLING MACHINE
Evolution enjoys a strong reputation in Magnetic Drills as part of the Evolution Steel range of products which are used in heavy industry. It is because of this unsurpassed experience that Evolution can now offer a professional quality magnetic drill at a price many site workers can easily justify. With so many modern buildings built around steel framework a Magnetic Drill is an essential piece of kit, and of course if the steel has to be joined to timber there simply is no substitute for a Magnetic Drill, simple, easy to use and incredibly accurate. The BORA2800 will drill up to 1-1/8" in diameter through material up to 2" deep, it is very portable and perfect for use on site. A chuck is included, enabling twist drills to be used as well as cutters.
Motor (230v or 115v 50/60 Hz) (Watts) 1,200 Watt
Maximum Cutter Diameter 1-1/8"
Recommended Maximum Duty Cycle 30mins
Sound Pressure Level (Under Load) 90dB(A)
Maximum Dimensions Rack Fully Raised (HxWxD) 18.5" x 10.25" x 11.8"
Maximum Dimensions Rack Fully Lowered (HxWxD) 15" x 8.6" x 11.25"
Magnet Dimensions (HxWxD) 1.9" x 3.1" x 6.5"
Cutter Retainer Internal Diameter (mm) 3/4" Weldon Shank
* The Amazing BORA2800 magnetic drilling system with heavy duty arbor system.
* Cutting capacity 7/16" to 1-1/8". Cutters available in 1" and 2" depths, twist drill capacity 1/2".
* Powerful 2200 watt 3900rpm motor copes with the heaviest of work. Earth grounded.
* Weighs 28lbs and rotates at 570 revolutions per minute (no load).
* Includes, mag bag (backpack/carry case), cutter guard, chain, operators manual.
1 Mag Bag (Backpack/Carry Case)
