24" x 78" favretto programmable surface grinder
Please see info below and photos on a super nice 24" x 78" Favretto Surface Grinder. This machine is coming out of a first class machine shop, never ran production and is the nicest surface grinder we have ever owned. It is under power in in Cincinnati, OH and is available to show to you. This machine will make someone an excellent machine . I do have the ability to load this machine on your truck. I can shop and get you a freight rate if you want me to. Please call

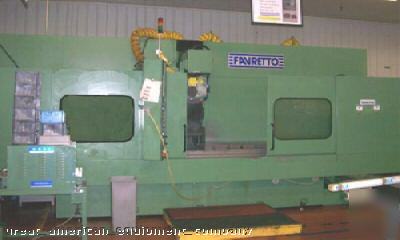

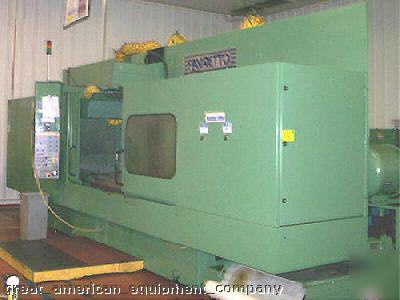

24" x 78" FAVRETTO HORIZONTAL SPINDLE RECIPROCATING SURFACE GRINDER
Model MD-200, New 1997, S/N 03926

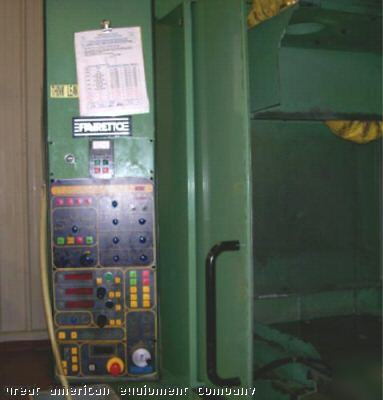

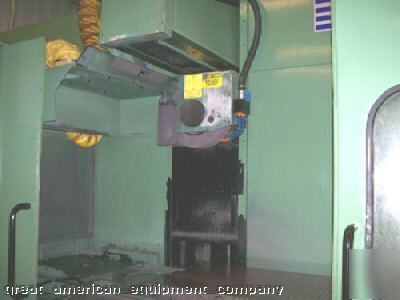

EQUIPPED WITH: Favretto Programmable Control, Automatic Incremental Downfeed, Automatic Reciprocation and Crossfeed, 23-1/2" x 78-1/2" Electro-Magnetic Chuck, Above-The-Wheel Wheel Dresser, Coolant/Filtration System.
NOTE: New Replacement Price is $ 395,000.
Max Table Working Surface............................ 23.5" x 86"

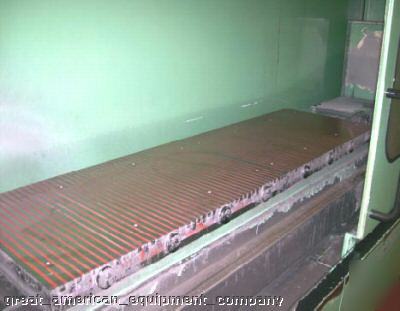

Magnetic Chuck Working Surface....................... 23.5" x 78.5"
Longitudinal Travel (X-Axis)......................... 87.4"
Cross Travel (Z-Axis)................................ 29.5"
Vertical Travel (Y-Axis)............................. 30.3"
Maximum Grinding Height.............................. 29.5"
Maximum Grinding Width............................... 33.4"
Table Longitudinal Feeds Range (Variable)............ 39 - 1574 IPM
Vertical Feed Rapid Traverse......................... 59 IPM
Cross Feed Rapid Travere............................. 196 IPM
Grinding Spindle Speed............................... 1400 RPM
Grinding Wheel Diameter.............................. 18"
Grinding Wheel Width, Standard....................... 3.94"
Grinding Wheel Hole Diameter......................... 8"
Approximate Machine Dimensions....................... 290"x 101"
Approximate Machine Height........................... 118"
Approximate Machine Weight........................... 25,300 LBS
CONDITION: Machine Appears to be in Excellent Condition !
