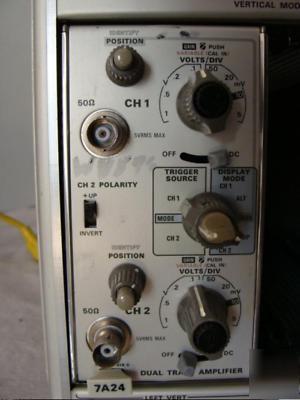

Tektronix 7A24 dual trace amplifier plug in
The 7A24 is a very fast dual trace amplifier plug-in with up to 400 MHz bandwith depending on mainframe. The input impedance allows direct termination in 50 ohms system. Disadvantage when measuring high impedance sources.
SPECS: *** Bandwidth 400 MHz (depending on mainframe) *** 5 mV/DIV to 1 V/DIV in a 1,2,5 sequence *** Deflection Gain Accuracy within 2% at a Gain of 5 mV/DIV *** Input Impedance 50 ohm +/-2% *** Input VWSR equal to, or less than1.25 at 5 mV and 10 mV. Equal to, or less than 1.15 at 20mV to 1V, from DC to 350 MHz. *** maximal input voltage 5 volt (0.5 watts) *** CMRR at leat 10:1 dc to 50 MHz *** Delay time difference between channels 200 ps or less.
