> New 2PCS,TDA7293 120V/100W audio amplifier ic with mute

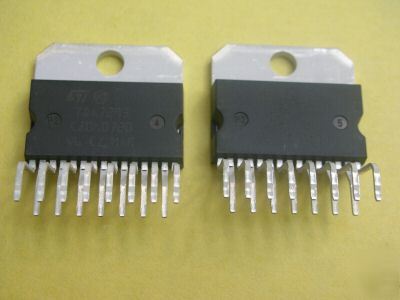

New 2PCS,TDA7293 120V/100W audio amplifier ic with mute
- VERY HIGH OPERATING VOLTAGE RANGE ( 50V)
- HIGH OUTPUT POWER (100W @ THD = 10%, RL = 8ohm, VS = 40V)
- MODULARITY (MORE DEVICES CAN BE EASILY CONNECTED IN PARALLEL TO DRIVE VERY LOW IMPEDANCES)
- DESCRIPTION: The TDA7293 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises. Parallel mode is made possible by connecting more device through of pin11. High output power can be delivered to very low impedance loads, so optimizing the thermal dissipation of the system.
