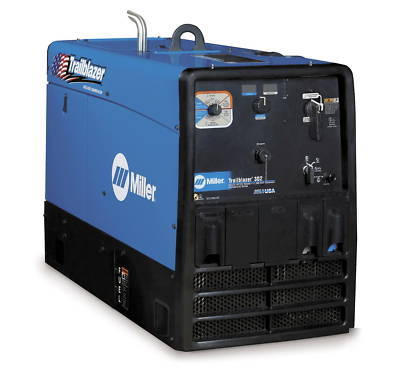

Miller trailblazer 302 welder mig-tig-stick 907216
The professional's choice for flawless multi-process arc performance and code-quality welds. The Trailblazer 302 delivers more CV to enhance Stick welding performance while MIG and FCAW performance is superior with any wire. The unbeatable Trailblazer 302 has an added AC output for TIG aluminum welding. And, professionals with a Trailblazer get more work done because it features two GENERATORS! One 4-pole, 3-phase generator provides a smooth welding arc, while the second provides strong auxiliary power in which there is no interaction between the welding arc and power tools.
New! Quietest engine drive in its class. Fully enclosed case protects the engine and decreases sound levels by 1/3 over previous models. Removable service doors provide easy access for engine maintenance.
11,000 watts of Accu-Rated - Not Inflated generator power. Cranks out enough power for most applications: job site, farm/ranch, or home. 9,500 watts of continuous power.
Exclusive! Trailblazer Series offers the ONLY two-generator system- one for welding and one for generating power - meaning no interaction between tools and the welding arc, and it has the strongest generator power while welding.
Improved Arc Performance. Legendary four-pole rotor and 3-phase weld output for the smoothest, most stable and flawless multi-process arc in their class. Now with preset DIG settings (Stick), Adaptive Hot Start , and Lift-Arc /Scratch Start TIG with Auto-Stop .
New! DC TIG with Auto-Crater allows time for addition of filler to crater, and eliminates unwanted arc strikes outside the weld area for better weld finishes.
DC TIG with Auto-Stop allows the arc to be stopped without the loss of shielding gas and without unwanted arc strikes outside the weld area for better weld finishes.
Exclusive! Digital Meters with SunVision technology for easy reading in direct sunlight or shade. Self-calibrating digital weld meters with meter maintenance functions.
Larger Fuel Capacity. 12-gallon tank can keep the generator running for 14 hours with a 4000-watt load. Exclusive Smart Fuel Tank is designed to minimize the chance of back splash when refueling.
Exclusive! Super-tough Protective Armor with receptacle and output stud covers made from XENOY make the Trailblazer virtually indestructible. Other XENOY applications include: automotive bumpers, tractor hoods, lawn mower decks, etc...
Active Field Current Control makes small adjustments to increase overall arc performance in all conditions and weld processes.
Four Pole - Three Phase Weld Output
True multiprocess CC or CV output is perfect for the professional welder, producing X-ray quality Stick, MIG, and TIG welds. Its four pole, three phase welding arc is the smoothest, most stable arc in its class.
Adaptive Hot Start for Stick automatically increases output amperage at the start of a weld should the start require it and prevents the electrode from sticking and creating an inclusion.
Engine iIdles 3-4 seconds after starting to extend engine life and reduce fuel consumption.
Auto Remote Sense automatically switches from Panel to Remote Amperage/Voltage (A/V) control with remote connected. Eliminates confusion of the Panel/Remote A/V switch.
* Air Carbon Arc (CAC-A) Cutting and Gouging (Rated: 3/16 in carbons, Capable: 1/4 in carbons)
* Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
* Maintenance and Repair
Rated Output at 104 F (40 C)
* MIG/FCAW: 300 A at 25 V, 100% duty cycle
* DC TIG/Stick: 280 A at 25 V,
* AC TIG/Stick: 200 A at 25 V, 60% duty cycle
* DC Stick/TIG: 10 - 300 A
* AC TIG/Stick: 30 - 225 A
* MIG/FCAW: 13 - 35 V, 325 A
Generator Power- rated at 104 F (40 C)
* Accu-Rated 10,500 Watts Peak
* 9,500 Watts Continuous
* Kohler: 23 HP at 3600 RPM (gas or LP)
* Kohler: 20 HP at 3600 RPM (LP)
* Robin: 22 HP at 3600 RPM (gas)
Air-cooled, Gasoline or LP
* ____________________________________________________
