0.75" dia. star sv-20 cnc swiss type lathe, fanuc 16T,
0.75" Dia. Star SV-20 CNC SWISS TYPE LATHE, Fanuc 16T,

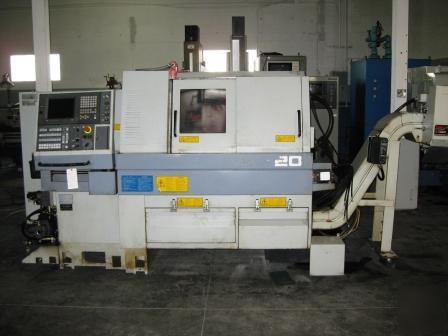

0.75" Dia. Star SV-20 CNC SWISS TYPE LATHE, Fanuc 16T, Chip Conveyor
3/4" STAR MODEL SV-20 9-AXIS CNC SWISS TYPE LATHE
General Specifications for Star SV-20 from Manual
Max turning diameter: 20mm (25/32")
headstock spindle speeds: 500 - 10,000 rpm
spindle indexing: .01 deg (full C-axis)
spindle motor: 3.7kw (cont)/5.5kw (30 min) main
Number of tools: 5 (12mm) tools (4 tools opt/16mm)
12mm tool if 3 tool/station opt
16mm tool if 1 tool/station opt
Tapping capacity: turret m10 x p1.5
power driven tool gang tool post m6 x p1.0
Milling capacity: 10mm (25/64")
Max. die cutting capacity: m10 x p1.5
Gang tool post power driven tool: 6,000 rpm
max. chucking cap.: 20mm (25/32")
spindle speeds: 500 - 10,000 rpm
sub-spindle motor: 2.2kw(continuous)/3.7kw(15min)
Dimensions (approx): 104"l x 55"w x 66"h
(3) Double Drill Sleeve Holders
Machine was originally used with high pressure coolant
Bar Feed: Used and New Hydraulic & Magazine type units available... P.O.R.
Iemca, LNS, Edge Technology, FMB, MTA, Spego, SMW ..
