Custom built hi- production belt grinder/ sander

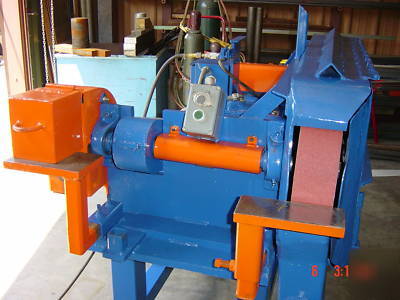

CUSTOM BUILT INDUSTRIAL BELT GRINDER
BUILT FOR HIGH PRODUCTION AND RELIABILITY
THIS IS A COMBINATION BELT GRINDER AND ROCK GRINDER
4 WIDE X 132 LONG ABRASIVE BELT ON THE RIGHT SIDE AND A 12 DIA. X 1 WIDE ABRASIVE ROCK ON THE LEFT SIDE
ABRASIVE BELT SPEED: 8,000 SFPM
GRINDING ROCK SPEED: 1,750 RPM
MOTOR AND ALL COMPONENTS MOUNTED ON A 1 THICK PLATE w/ 4 SQURE TUBING FOR LEGS
MOTOR MOUNT: SLOTTED BASE w/ JACK SCREWS
CONTACT WHEEL: 18" DIA. x 4" WIDE ALUMINUM/ HARD RUBBER TREAD MOUNTED ON A 1 3/4 SHAFT w/ HEAVY-DUTY PILLOW BLOCK BEARINGS.
IDLER PULLEY: 12" x 6" CAST-IRON W/ TAPER-LOCK BUSHING MOUNTED ON A 1 3/4 SHAFT w/ HEAVY-DUTY PILLOW BLOCK BEARINGS.
GENERAL: COMPLETE IDLER UNIT IS ADJUSTABLE w/ JACK SCREWS
PARKER 2 BORE 2A AIR CYLINDER FOR BELT TENSION w/ MANUAL 3-WAY VALVE
SWING UP DOOR FOR QUICK & EASY BELT CHANGE
STOP/ START PUSH BUTTON CONTROLS w/ SQUARE D SIZE 1 MAGNETIC STARTER
4" ROUND TUBE UNDER BELT GUARD FOR DUCT COLLECTION CONNECTION
ALSO SQUARE DOWN SPOUT FOR HEAVY PARTICLE COLLECTION IN A PAN OR BUCKET
APPROX WEIGHT.........1,500 lbs

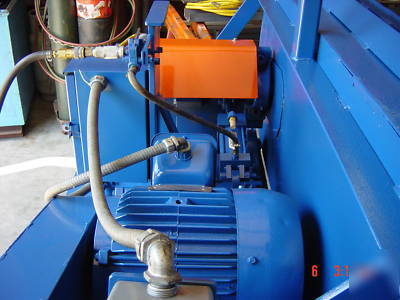

MOTOR: 7 1/2 HP, TEFC, 3/220/440
CLEANED, PAINTED, CHECKED AND IN EXCELLENT CONDITION
If you have forgings, castings, or do fabrication work and want a grinder that can increase you productivity, then this is the grinder for you. It is amazing how much material it will remove in a short period of time.
I can load on a flat bed truck or trailer. I can load on a covered van at curbside only because I don t have a loading dock
I will deliver for $100 up to 150 miles, and up to 400 miles for $1.00/ mile.
If you have any questions, you can e-mail me and I will e-mail you back or call if you leave a phone number.
