> 3-port 3/2 changeover solenoid valve 1/4"bspp G1/4 110V

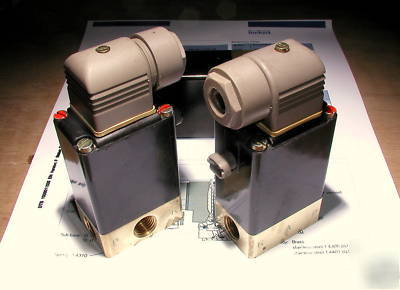

3-port 3/2 changeover solenoid valve 1/4"bspp G1/4 110V
Manufacturer: Burkert [Germany]
Manufacturer Part No: 0330 - C
Coil ratings: 110V ac 50/60Hz [+/-10%]
This is an expensive "flipper" type valve. It contains a kind of flipper-paddle that moves side-to-side to seal the side ports "P" when off and "R" when on. The unique valve design hermetically isolates the actuator from the fluid making it less sensitive to contaminated fluids and less prone to wear or damage than a plunger-type system and provides a long service life, even in unlubricated applications. It also means that all three ports are conveniently situated in the base of the valve.
Function: 3/2 Changeover [In "off" state: port A open to port R. In "on" state: port A open to port P]
Port Size: 1/4" bsp parallel [female] all three ports. 1/4" bsp parallel = G1/4
Fluid compatibility [NBR seals]: neutral gases and liquids. Including compressed air, water, diesel, light/hydraulic oils etc.
Valve has a manual "test" actuator button. This will operate the valve without power. It is momentary push to operate.
For full spec. see: http://www.finecontrols.co.uk/pdfs/DS_330_3_2_Way_EU.PDF
Supplied with DIN connector plug [this contains screw terminals and gland].
Condition: Never fitted but removed from original packaging and stored boxed with an assortment of other valves for several years - so some trivial marking possible. Hence I am not listing these as new. But they are smart, clean and unused. And for all practical considerations they are definitely as good as new.
