New in circuit capacitor esr meter( esr cap tester)

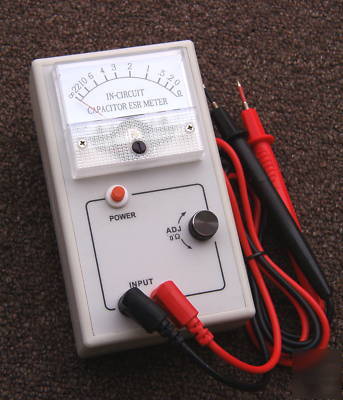

IN-CIRCUIT CAPACITOR ESR METER
THIS IN-CIRCUIT CAPACITOR ESR METER IS SPECIALLY DESIGNED TO MEASURE ESR(EQUIVALENT SERIES RESISTANCE) ON CAPACITORS IN THE RANGE OF 0.1UF OR LARGER,IN OR OUT OF CIRCUIT.THE ABILITY TO TROUBLE SHOOT IN-CIRCUIT SAVES TIME.
IN THE PAST,LCR METER WERE USED TO TEST THE VALUE OF A CAPACITOR AND TESTING IT OUT OF CIRCUIT,THESE METERS WILL INDICATE THAT A BAD CAPACITOR IS GOOD. BECAUSE IT ONLY MEASURES ITS CAPACITANCE VALUE AND A BAD CAPACITOR CAN STILL STORE CORRECT AMOUNT OF CHARGE WHEN IT IS TESTED BY A LCR METER.CAPACITOR ESR METER CAN QUICKLY DETERMINE IT'S ESR VALUE,LETTING YOU KNOW RIGHT AWAY IF A CAPACITOR IS GOOD OR BAD.BY PERFORMING THIS TEST IN-CIRCUIT BOARD REDUCING THE AMOUNT OF TIME NORMALLY SPENT ON TROUBLE SHOOTING.
* MEASURES ESR WITH A RANGE OF 0 TO 22
* 16MV Vp-p OUTPUT TEST VOLTAGE (100KHZ SINE WAVE) WILL NOT TURN ON ANY SOLID-STATE DEVICES
* IN-CIRCUIT ESR TESTING ELIMINATES THE HASSLE OF DE-SOLDERING COMPONENT FROM PCB
* AUTO POWER OFF IF NO ACTIVITY
* MEASURE THE INNER RESISTANCE OF THE BATTERY DIRECTLY
* DIMENSIONS: 142 x 82 x 50 MM
* WEIGHT: 0.21 KG (NOT INCLUDING BATTERIES)

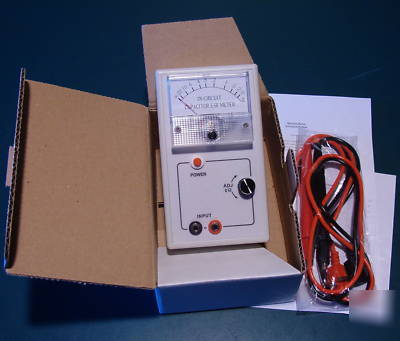

Package including: (1) In-circuit ESR Meter
