Lindberg bluem SWB1122A shaking water circulating bath

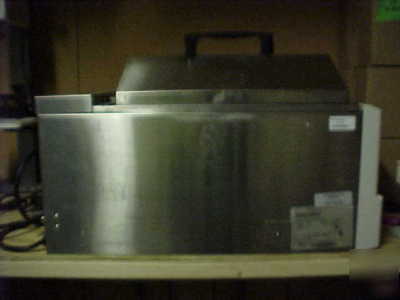

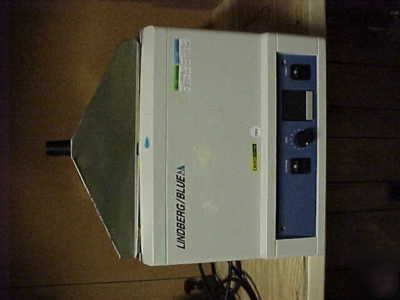

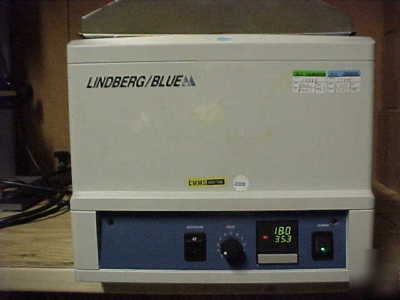

This is a used water bath in good working conditions:
Two baths in one, Lindberg/Blue M shaking water baths are designed to meet industrial research, environmental, biotech and general laboratory applications which require close temperature control with a reciprocating motion.
* The multi-use design allows operation with or without the shaker function.
* Choose from heated only or heated and refrigerated models.
* Temperature range from 5 C above ambient to +100 C, uniformity 0.1 C; refrigerated model rated at 0 C to +100 C, 0.1 C.
* Microprocessor control with RTD probe for simple, accurate and repeatable operation.
* Single stage, centrifugal pump with independent supply/return ports for maximum circulation.
* Independent, adjustable shaker function with separate ON/OFF switches.
* Built to UL and CUL criteria for safety and performance.
* Includes 10 power cord with plug.
* Digital temperature display, simultaneously reads setpoint and water temperature.
* Recessed control module protects against dirt and moisture.
* Long-life, low watt density heating elements for quick response to controller.
Dual Independent Overtemperature Safety System
* Adjustable high limit control prevents critical process overtemp conditions at any point over the bath operating range, protecting the bath and its load; interrupts heat, flashes visual warning and automatically resets when temperature returns to normal.
* Fixed overtemperature safety, factory set 105 C, shuts off bath power; push button manual reset.
* Independent ON/OFF switch for shaker operation.
* Reciprocating action, adjustable over a range up to 200 strokes per minute.
* Speed control dial with illuminated power switch for variable motion adjustment.
* Adjustable stroke from 0.875 to 1.5 .
Cabinet and Tank Construction
* Integrated industrial strength pump for internal circulation; maintains precise temperature uniformity throughout the medium.
* Rounded corners for better water circulation, improved uniformity and easier cleaning; includes a built-in drain.
* Corrosion resistant 304 stainless steel interior tank withstand the most critical applications in demanding laboratory environments.
* Independent shaker carriage,welded 304 stainless steel on high impact nylon rollers; removable.
* Insulated chamber walls improve temperature stability and energy efficiency.
* Protective non-skid rubber feet to protect the lab bench.
* Mounting clip for immersion glass thermometer; thermometer sold separately.
Refrigerated Shaking Circulating Model
* Refrigeration system allows accurate control at temperatures near or below ambient conditions.
* Quiet-running, hermetically sealed refrigeration system.
* High volume heat removal capacity rated at 3000 BTU/Hr at 27 C (nominal).
* Independent ON/OFF switch for refrigeration system; system can be switched OFF for operation at above ambient temperatures.
