Yellow jacket 69365 heated accuprobe leak detector

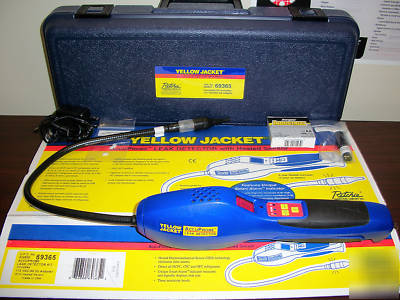

Yellow Jacket 69365 Heated AccuProbe Leak Detector
The AccuProbe leak detectors feature heated sensor technology that is designed to detect the more current and difficult HFC refrigerants such as R134a, R404a, R407, and R410A, in addition to all HCFC (R22) and CFC (R412) refrigerants including SNAP approved hydrocarbon blends, all with minimal chance of false alarms. The AccuProbe leak detectors do not require rechargeable batteries.
The SmartAlarm LED shows how big or small a leak is on a scale of one to nine:
* 1 to 3 - less than 0.1 oz/yr
* 7 to 9 - more than 0.5 oz/yr
In addition to the SmartAlarm indicator, the AccuProbe features low, normal and high sensitivity levels with visual and audible signals.
* If there is no response from the flashing tip or beeping signal at the preset normal sensitivity in the general area of a suspected leak, select high sensitivity.
* High sensitivity will detect even low levels that could b e missed with other detection systems.
* Use low sensitivity as y ou move the tip over more defined areas.
The frequency of flashing from the heated sensor tip increases as you get closer to a leak and refrigerant concentration increases. The audible alert, which can also be muted, increases in frequency and duration as concentration increases.
* Instantaneous response time
* Clears quickly from large amounts of refrigerant
* Automatic calibration and reset to ambient
* Leak Test Vial included to verify proper functioning of detector
* 18-month limited warranty (12-month warranty on sensor)
