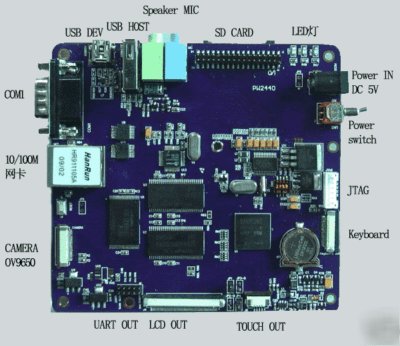

Samsung S3C2440 ARM9 board + 3.5" tft lcd touch screen
-CAMERA: a CAM, OV9650 support, OV9620 1.3-megapixel CAMERA phones, only the class WinCE5.0
-COM port: three serial, three three-wire system. One is DB9 COM1
-Audio: an audio output, an audio input.
-SD CARD: a CARD SD CARD SD, support ".
-RESET button: a restart button.
-Keys: 20 buttons, equipped with driver.
-JTAG mouth: for burning startup guide files use.
-The LCD interface: reserve a direct connect LCD interface, the 54PIN FPC, standard is LQ035NC111
-Expand IO: double row spacing of 2.0 34 IO expansion.
-The clock on the plate with the clock battery: 3V batteries.
-Power supply: DC power input, working current 5-v about 0.4.
-GPS interface: directly support the GPS module
-Memory size switch: 64M support with different line switch 128M memory
-Linux2.6.18.2 version , Wince5.0 version , provide the corresponding source system
-LCD drive is labeled by driving respectively: pick all sorts of small resolution of the board of
-support 5.6 TFT LCD ,3.5 TFT LCD display screen, with output function
-USB wireless card driver, USB 2,000,000 pixels camera driver
-Three serial, COM0 GPS receivers/GPRS, support USB download method
-The clock, IP address, PC synchronization options
-ATBOOT. Bin USB automatically download, systems division
-To make a display, BSP LOGO himself LOGO.
-Recording and playback, at the same time put record function
-USB HOST support a USB port, automatic identification equipment
-USB DEV support USB download system
-OV9650 1.3-megapixel camera, provide source, display window driven only an executable program
-support 10/100M interface, filtering, do not need to be in the same LAN manual distribution MAC
-GPS navigation direct run software
-LINUX2.6 kernel to download ATBOOT USB flash, provide UBOOT1.3 Nand with detailed UBOOT compiler
-Audio support recording playback
-HOST support USB ports on external expansion
-0/100M interface, filtering, do not need to be in the same LAN manual distribution MAC
-ATBOOT does not provide UBOOT, provide source code
-ATBOOT does not provide source code, provide UBOOT source code.
