Quality uk 15W pll fm transmitter mains pwd 88-108MHZ

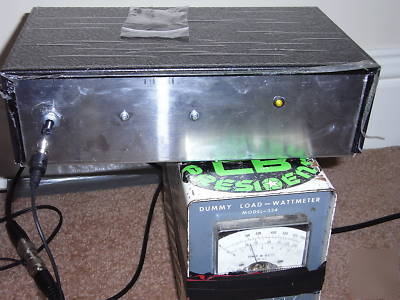

A 15 watt FM Transmitter for the broadcast band (88-108mhz), currently tuned to 88.6MHz
(Antenna available, please read everything)
**NOW COMES COMPLETE WITH BUILT IN REGULATED POWER SUPPLY!! (avoids power dips)**
* 15 watt RF amplifier module built around a rugged transistor + low pass filter
* Single RCA phono input (Like all transmitters this is Mono, but is fully compatible with a stereo encoder)
* ***NEW*** NOW COMES WITH BUILT IN POWER SUPPLY!!!! (PLUG STRAIGHT INTO THE MAINS, 240v)
* *** BRAND NEW DESIGN: AMPLIFIER NOW IMPROVED!!***
* ***If you want a low/medium power reliable transmitter grab this while you can.***
PLL Typ +/- 300 Hz (step freq. 100KHz)
* Frequency: 87.5 to 108 MHz
* Harmonic Rejection: better than -50dB (through LPF)
* Stability: Transistor has ability to withstand high SWR mismatch for short periods
* Status LEDs: (external) DC power (internal) Exciter RF power
A decent set up like this would cost a minimum of around 200 from most commercial transmitter suppliers in UK (and probably Europe too!!!), plus delivery times can vary and take up to 8 WEEKS!!!
Something comparable in price from the far east in NOT comparable in quality!!
Please check out the following VERY useful article which may answer many of your questions:
http://www.irational.org/sic/radio/faqa.html
It may be a little old now (talking about using tape players LOL) but all the principles still stand true. Any further equipment you require i may be able to supply, check my other listings or email me.
2. The goods will only be used within a completely RF screened and shielded metal enclosure or environment for testing, evaluation, experimental or laboratory purposes and any other use that does not radiate electro-magnetic waves into free space. I am not an unqualified end user and I have RF engineering and electromagnetic compatibility skills at my disposal. I understand EMC compliance.
3. The various combinations of apparatus are intended for use permanently at a pre-defined location with a licence or authorisation from the radio spectrum regulator of the EU member state. I am not an unqualified end user and I have competent RF engineering skills at my disposal. I will take responsibility that the final installation is in accordance with the code of practice for site engineering. Furthermore I indemnify the seller of these items (XXGerminator) from all future conditions arising from the use of this equipment. Your statutory rights remain unaffected.
Anything you are unsure of please ask, i'm more than happy to help. Thanks for looking!
