Pickit 2 usb pic microchip zif ICD2 PIC18F DSPIC33 mcu
PICkit 2 Microchip USB Programmer / Debugger
PICkit2 Microchip USB PIC Development Programmer / Debugger
PICkit2 is a low-cost development kit for programming many of Microchips baseline, midrange, PIC18F, PIC24, dsPIC30, dsPIC33 families of Flash memory microcontrollers.
Operating System (firmware) can be easily upgraded from the programming software. New device support can be added by updating the operating system. The latest firmware is available on Microchips web site at .
* Compatible with PICKIT2 (Microchip) 100%
* Easy to use Windows programming interface for Programming many of Microchips Flash family of Microcontrollers.
* No External Power Supply Required.
* USB Standard Computer Connection.
* Supports 2 Textool ( 40 Pins and 20 Pins ).
* Supports a wide range of PIC Microcontrollers from 8 pin to 40 pin.
* Have ICD2 Connector for connect with target board.
* Power and Programming LED's.
* Work with Pickit2 Programming software from http://
* Have PROGRAM button and 2 EEPROM sockets for stand alone programmer function (with out Computer).
1 PICkit 2 USB Programmer / Debugger ( Include USB Cable & RJ-ICD2 Cable & CD Document )
**Not include Textool (40 pin & 20 pin)**
From http:// (Jun2008)
Bold font indicates new parts supported in Application v2.20 and device file v1.20 ( Check update in Microchip.com )
* PIC16F630, 631, 636, 639, 676
* PIC16F873A, 874A, 876A, 877A
* PIC16F882, 883, 884, 886, 887
* PIC18F1220, 1320, 2220, 2320
* PIC18F2331, 2410, 2420, 2431
* PIC18F2510, 2515, 2520, 2525
* PIC18F4220, 4320, 4331, 4410
* PIC18F4221, 4321, 4423, 4523
* PIC18F4420, 4431, 4450, 4455
* PIC18F4480, 4510, 4515, 4520
* PIC18F4525, 4550, 4580, 4585
* PIC18F6310, 6390, 6410, 6490
* PIC18F6520, 6620, 6720, 8520
* PIC18F6525, 6585, 6621, 6680
* PIC18F8310, 8390, 8410, 8490
* PIC18F8525, 8585, 8621, 8680
* PIC18F6527, 6622, 6627, 6722
* PIC18F8527, 8622, 8627, 8722
* PIC18F24J10, F25J10, F44J10, F45J10
* PIC18LF24J10, LF25J10, LF44J10, LF45J10
* PIC18F65J10, 65J15, 66J10, 66J15
* PIC18F85J10, 85J15, 86J10, 86J15
* PIC24FJ64GA006, 64GA008, 64GA010
* PIC24FJ96GA006, 96GA008, 96GA010
* PIC24FJ128GA006, 128GA008, 128GA010
* PIC24HJ64GP206, 64GP210, 64GP506, 64GP510
* PIC24HJ128GP206, 128GP210, 128GP306, 128GP310
* PIC24HJ256GP206, 256GP210, 256GP610
* dsPIC30F5011, 5013, 5015, 5016
* dsPIC30F6010A, 6011A, 6012A, 6013A, 6014A
* dsPIC33FJ64GP206, 64GP306, 64GP310
* dsPIC33FJ64GP706, 64GP708, 64GP710
* dsPIC33FJ128GP206, 128GP306, 128GP310
* dsPIC33FJ128GP706, 128GP708, 128GP710
* dsPIC33FJ256GP506, 256GP510, 256GP710
* dsPIC33FJ64MC506, 64MC508, 64MC510
* dsPIC33FJ128MC506, 128MC510
* dsPIC33FJ128MC706, 128MC708, 128MC710
* dsPIC33FJ256MC510, 256MC710
Device Programming and Debugging Support
* PIC16F684*, 685*, 687*, 688*, 689*, 690*
* PIC16F913, 914, 916, 917, 946
* These devices require an ICD header board to enable debugging with them.
** You can read all list in Microchip.com **

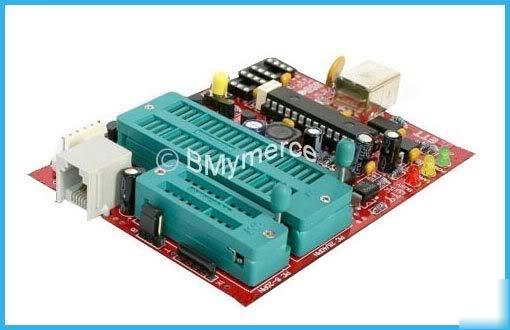

* PICkit2 USB Programmer / Debugger Board
** Not include Textool (40 pin & 20 pin) **
