New cti on-board 250F pn:8116152G001 cryopump cryo pump

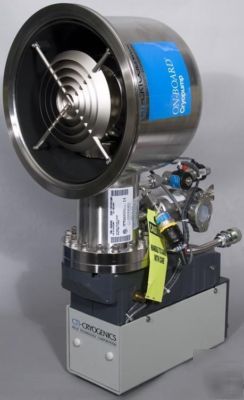

NEW CTI On-Board 250F Cryopump with a FastRegen Ion Implantation Module
Specifications are from CTI and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
Link to the Datasheet: CTI On-Board Family Cryopump Datasheet
Link to the Manual: CTI On-Board Family Cryopump Manual
Vacuum Flange ID: 250 mm (Metal Seal, ANSI, and ISO)
Argon: 700 Sccm (9 Torr-Liters/Sec.)
Full Regeneration (Typical): < 3.3 hrs
Fast Regeneration (Typical): < 1.5 hrs
Cryopump Weight: 58 lbs. (26 Kg)
* Picture 6 - Vacuum Flange, Close-Up
* Picture 7 - Regen Module Connections
* Picture 8 - Serial Number Tag
