> 1/4" electric solenoid valve 3-way 12-v dc B30N

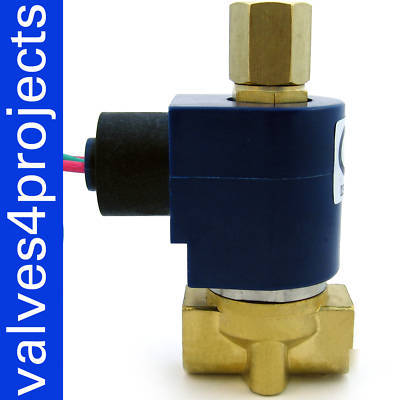

1/4" electric solenoid valve 3-way 12-v dc B30N
EHCOTECH B30N-1/4-CD-12VDC | 3-WAY | 1/4"NPT Ports | 0 to 115 psi | BRASS Body / NBR Seal
This 12-Volt DC, 3-way valve is great for many air applications (it also works with Water, Gas, Vacuum, and many low viscosity fluids).
Pictures 3 and 4 above explain how this 3-way valve works. When the valve is energized, the inlet port is connected to the outlet port and the top port (exhaust port) is closed. Once the coil is de-energized, the inlet port closes and the outlet port is allowed to vent to the exhaust port. Although this valve is perfect for use with air actuators (cylinders) which have a spring return, it can be used for many other applications as well.
3-Way, Direct Acting, Wet Armature
