Lot 4 honeywell diffuse photoelectric sensor sds-svp-D1

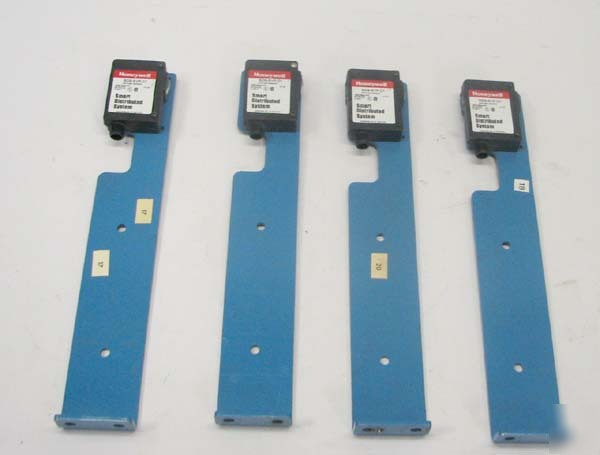

Lot 4 Honeywell Diffuse Photoelectric Sensor SDS-SVP-D1
* 4 - Honeywell Diffuse Right Angle Photoelectric Sensor
* Response Time: 0.8ms ON/ 0.8ms OFF
* Scan Type: Diffuse, short-range
* Configuration: Rectangular
* Sensing Range: 150mm (5.9in) max.
* Voltage Range: 11 to 25 VDC
* Current Consumption: 30mA max
* Standards: UL/CSA Class 2
* Termination Type: 4-pin microconnector
* Sensing Lens Material: Polycarbonate
* Indicator: Green Power LED, Red Output LED
* Electromagnetic Compatibility: Radiated Emmissions - FCC Part 15, Class A; Radiated Immunity - EN 61000-4-3, Level 3 (10 V/m); ESD- EN 61000-4-2. 4kV (contacr)/ 8kV (air); FTB - EN 61000-4-4, 2kV
* Sensitivity Adjustment: 1-Turn Potentiometer
* Bracket Measures: 11-1/2" x 2"
