Basic atom pro & bot board ii

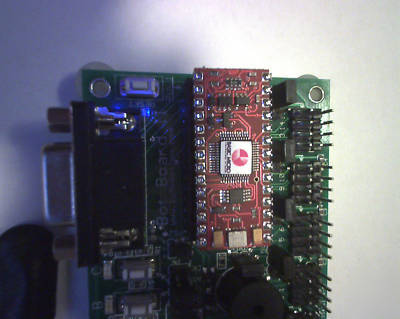

Basic Atom Pro Mounted on A Bot Board II by Lynxmotion.com
TheBot Board II, the best carrier board for the Basic Atom, or any other 24 or 28 pin microcontrollers. It's perfect for controlling your small robotic projects. It has an onboard speaker, three buttons and LED's, a Sony PS2 controller port, a reset button, logic and servo power inputs, an I/O bus with power and ground, and a 5vdc 250mA regulator. Up to 20 servos can be plugged in directly.
The powerful Basic Atom Pro. Faster and more memory than a BS2. Easy to program, reliable to use. Plugs into the Bot Board for complete access to all of the I/O pins. BS2 Pin Compatible, Easy to use, Upgradeable Firmware, Free Software, Includes O'Scope and In Circuit Debugger (ICD ) , all can be downloaded free from lynxmotion.com.
buffered speaker for all of those sound generating commands such as SOUND, FREQOUT, or DTMFOUT.
User Interface 3 Pushbuttons and 3 color LEDs on three I/O pins to make a simple user interface.
PS2 Port Sony PS2 game controller port for BA users.
Powering Options The board has two power inputs. One for the microcontroller, and one for the servos. The micro can be powered from its input, or the servo power input.
Analog Inputs By adding shorting jumpers you can route the power inputs to the A to D inputs for battery status monitoring.
The board has small screw terminals for applying power, so there is no need to solder wires.
The Basic Atom Pro has a new command called HSERVO. It can do all of the servo timing, (1.0 to 2.0mS), as well as sequencing of servo moves, in the background. This is a full featured multichannel variable speed servo controller, that's "built into" the microcontroller. It's like getting a free servo controller! However there is no serial data bottleneck. All of the servo control is as quick as changing a variable within your behavior program!
This combo pack was used 1 time to demonstrate C++ speaker operation and is in perfect working order.
