Reelcraft heavy duty service reel + military hose

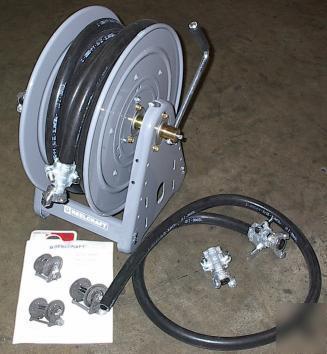

This item is for a Reelcraft Heavy Duty Hose Reel Model CA33106 L with 50' Neoprene MIL Spec. Thermoid 3/4" hose, plated couplings, and 6' extension lead.

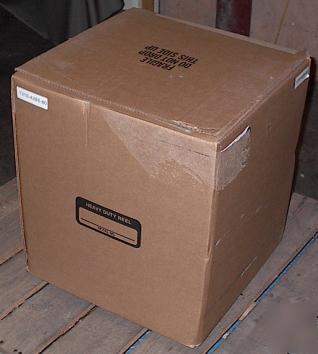

This is a BRAND NEW reel. These hose reels can be used for air, water, fuels and dozens of other materials. The reels were removed from their original packaging to have the hose installed and were replaced back into their original packaging.
Reelcraft's Series 30000 reels are designed for rugged, heavy duty
applications requiring long lengths of hose and large storage capacity.
All-bolted unitized construction with no welds to fatigue, full flow swivel
and heavy gauge steel frame, spool and drum ensure longest service life.
Series 30000 s vibration-proof, self-locking fasteners are ideal for
An optional air or electric motor is available for the 3000 Series.
Adjustable spool rotation drag that eliminates hose backlash
Zinc-plated swivel with grease fitting and "O" Ring options
Full flow shaft and ball bearing swivel (excluded 1/2" models)
Permanently lubricated dual main bearings
All bolted construction - no welds
Vibration-proof self-locking fasteners to ensure assemble integrity. Designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue. Full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life.
ReelCraft Catalog - http://reelcraft.com/pdfs/catalogs/pages/cat25.pdf
The hose and its outer covering are made of neoprene. For diesel fuel Thermoid states that neoprene is rated good for diesel service. A good rating means that the hose is generally suitable for continuous service and suitable for intermittent service. As a comparison, Thermoid rates a NBR (Nitrile butadiene rubber) hose as excellent for diesel use. An excellent rating means that the hose is suitable for continuous service. A complete technical reference is located here. http:// /images/Chemical_Resistance_Chart.pdf.
The Thermoid Brand hose is made to military specification AA-59565. For your reading pleasure, you can find the MIL spec. here. http://www.dscc.dla.mil/Downloads/MilSpec/Docs/A-A-59565/aa59565.pdf
If you have any questions specific to this item's application, email me to me. If I do not know the answer, I will find out.
Q.What type off nipple/connector is on the swivel end on the reel? I noticed you included an extra camlock end so I thought maybe there was a camlock end on the swivel on the reel. If so, any issues in your mind converting to NPT? Thanks!
Q. Could you please tell me the length and width of the base? The reel looks almost full with 50 feet of 3/4 hose. Is that the max capacity of 3/4" hose? Thanks.
A. The base of the reel is about 11.5" x 12.75". The hose reel's spool is 6" and accommodates up to 200' of 1/4", 140' of 3/8", 100' of 1/2" and 50' of 3/4" hose. The stated 3/4" hose capacity is 50'.
