Electrical connector .100 ampmodu headers, housings

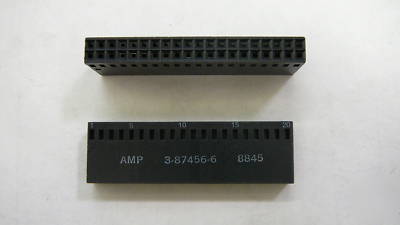

AMP/TYCO.100 AMPMODU Headers, Housings & ContactsPart Number: 3-87456-6
* Wire Termination Type = Crimp
* Mating Connector Lock = Without
* Mating Polarization = Without
* Housing Configuration = Both Ends Closed
* Comment = Cavity identification, AMP, part number and date code stamped on housing where size permits.; Strain reliefs are available and may be purchased separately.; Contact Extraction/Lance Reset Tool No. 843996-3.
* Contact Current Rating (A) = 3
* Voltage Rating (VAC) = 250
* Termination Resistance (m ) = 12
* Insulation Resistance (M ) = 5,000
* Dielectric Withstanding Voltage (V) = 750
* Centerline (mm [in]) = 2.54 [0.100]
* Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
* Accepts Contact Gender = Receptacle
* Approved Standards = UL E28476, CSA LR7189
* Housing Gender = Connector - Receptacle
* Operating Temperature ( C) = -65 +105
