Dwyer (love controls) digital manometer

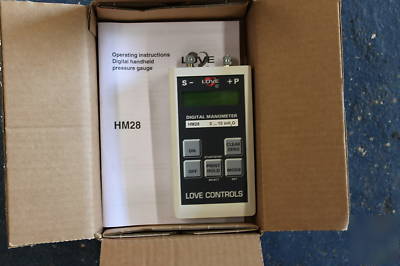

Dwyer Instruments - Series HM28: HM28D3B10000 Handheld Digital Manometer
High Accuracy, 0.2% with Calibration Certificate
Resolution to 0.000 of Selected Unit
Memory for up to 964 Readings
Output for Optional Printer or Computer Interface
The Series HM28 Digital Hand-Held Manometer is a precision instrument designed to measure a wide range of pressures to a very high accuracy. The unit incorporates a variety of features in an easy to use format that makes it useful in a wide variety of applications. Features include: measurement in all common pressure ranges, display resolution to 0.001, differential or relative measurement, two line liquid crystal display, and adjustable auto power off to conserve battery.
We are so proud of the accuracy of the HM28 that we provide a certificate of calibration with the unit at no additional cost. Depending on your application, the HM28 can be used as a secondary calibration standard for your other pressure instrumentation.
Pressure Connection: Hose; 4/6 mm or 1/8" NPT.
Accuracy: 0.20% full scale 1 digit (includes linearity, hysteresis, and repeatability).
Measuring Media: Instrument Air or Inert Gases. For HM28G3XXXXX, Any material compatible with 18/8 stainless steel.
Temperature Limits: 23 to 122 F (-5 to 50 C).
Storage Temperature: -4 to 140 F (-20 to 60 C).
Humidity: 30 to 95% rH, non-condensing.
Display: 2 line, 16 character, dot matrix LCD, with switchable display sizes.
Battery: 9V alkaline (included). Can operate from external power supply of 7 to 14 VDC.
Memory: 964 measured values. Recording intervals adjustable from manual, 1, 5, 10, 20, 30 seconds, 1, 2, 3, 5, 10, 30, 60 minutes.
Case Dimensions: 6 x 3.27 x 1.34 in (152 x 83 x 34 mm).
Maximum Measurement Rates: Stand alone: 5 readings/sec (0.2% rating). Output to RS-232: 20 measurements/sec (0.2% rating).
RS-232 Baud Rate: Adjustable, 1200, 2400, 4800, or 9600 baud.
Below are other pressure ranges available for Series HM28 Digital Manometer:
Error limit 0.2% F.S. for gage, underpressure and differential pressure
Error limit 0.05% F.S. for gage, underpressure and differential pressure
0-15.9 pisa (0.2% F.S. (110 kPa abs
