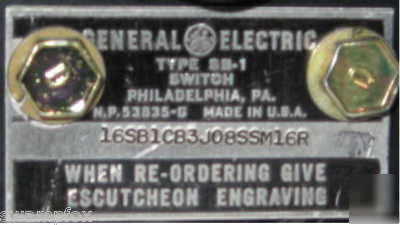

2X ge type sb-1 rotary switch 3-pos 16SB1CB3J08SSM16R

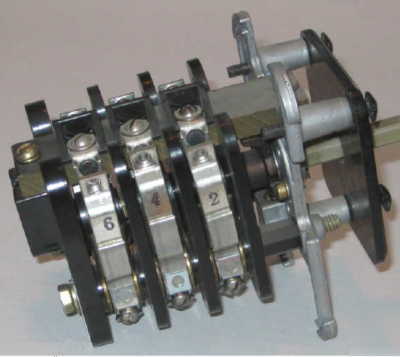

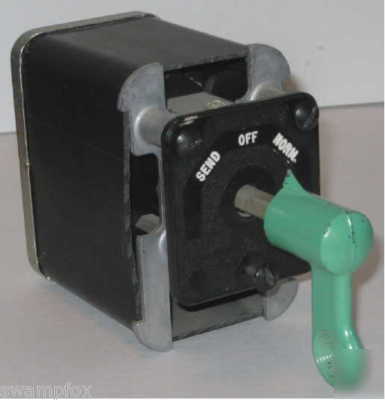

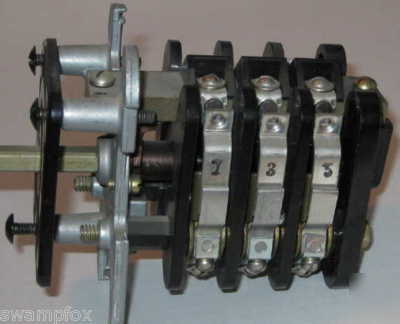

The handle is three position, labeled SEND, OFF, and NORM. In the first position, 1, 2 and 4 are closed. In OFF, only #4 is closed. In NORM, numbers 1, 3, 5 and 6 close.

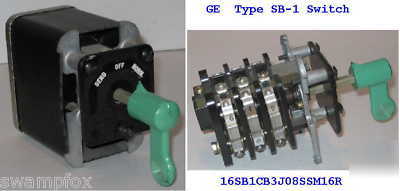

This listing is for a lot of two switches. Both are identical except on the second one there is a red handle, and it is labeled OFF (left position), no label in the middle, and NORM on the 3rd (right) position.

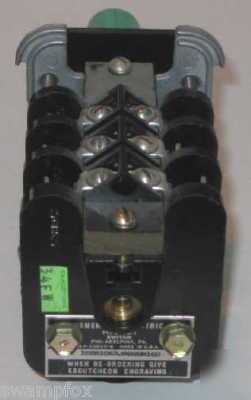

This item weighs two pounds (each). Total overall length is 7-1/2 inches (not counting cover locking nut on the back). Boxed (switch cover) section measures 2-7/8" wide, 4" deep, 4-1/4" tall.
